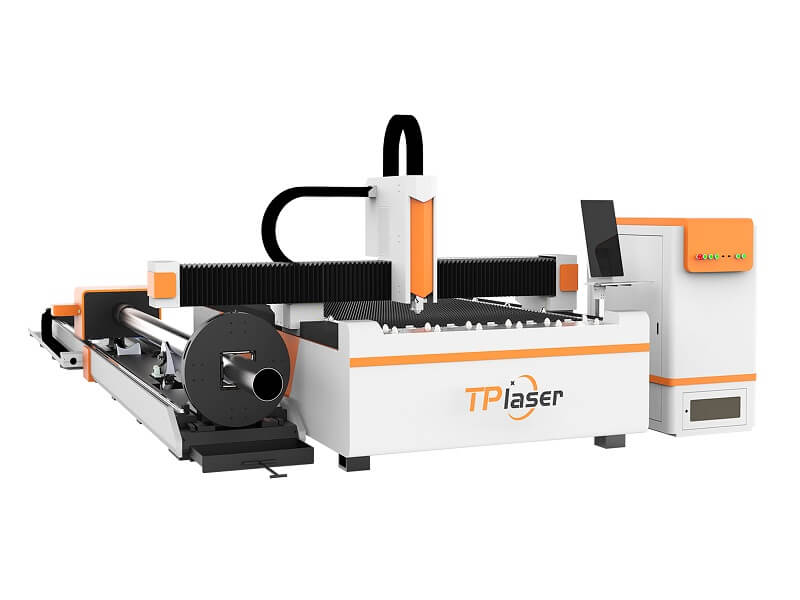

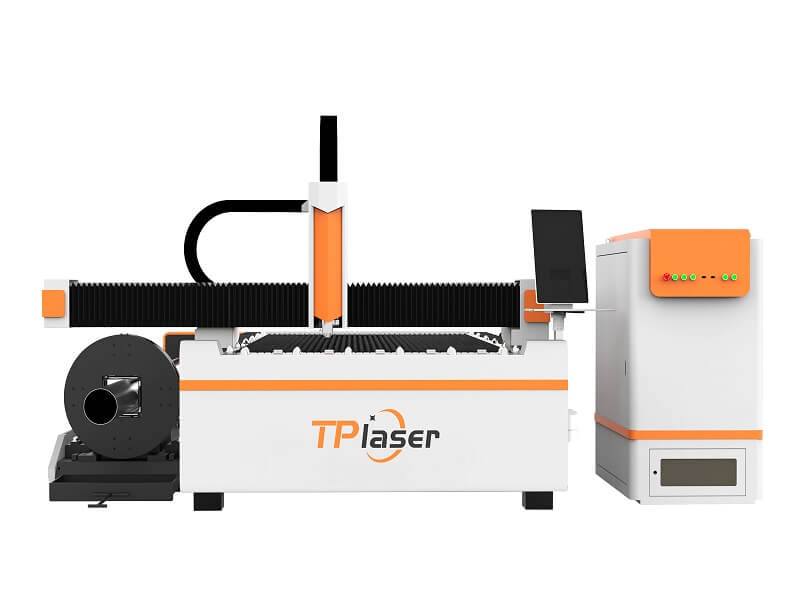

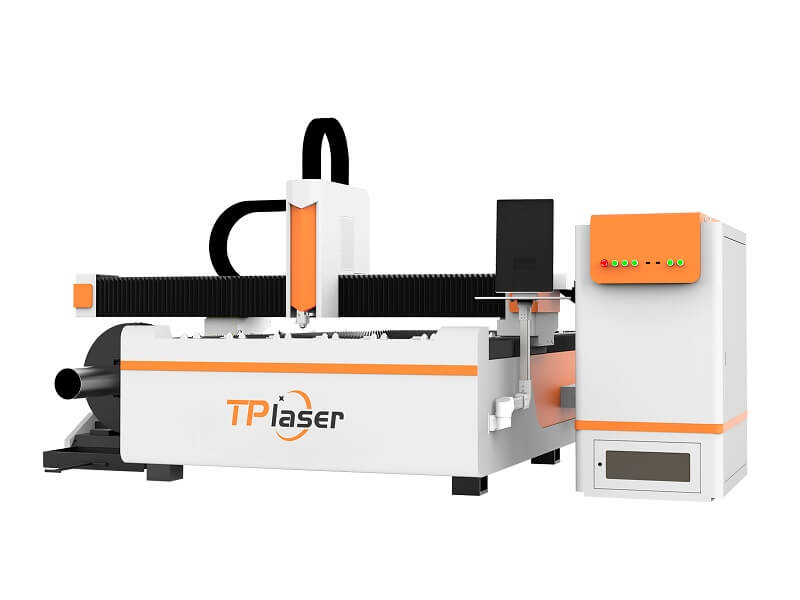

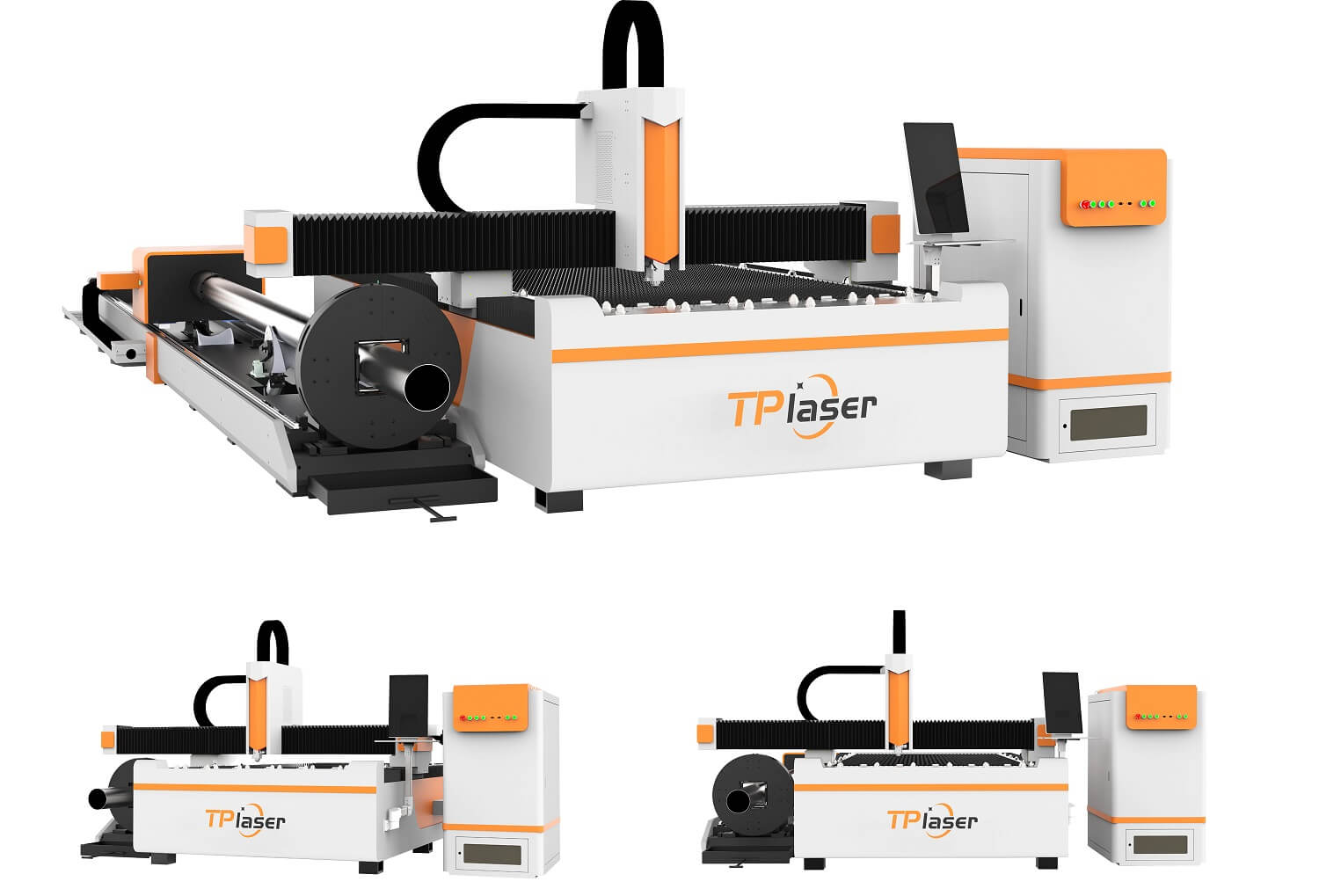

Buyer's ReviewsMetal pipe laser cutter is a plate and tube integrated fiber laser cutting equipment launched for customers who need both plate cutting and tube cutting. It has the advantages of stable performance, high efficiency and energy saving, and high cost performance.
Demonstration Video
Product Descriptions
The principle of metal pipe laser cutter is: the special parts for cutting the intersecting line are arranged on the side of the laser cutting machine worktable to complete the interchange cutting of the intersecting line of the pipe and the flat metal plate. Its characteristics: when the batch is not large, one machine can be used for multiple purposes (laser cutting of metal pipes and metal sheets), so that one machine can be used for two purposes, which reduces the investment in the number of equipment and the occupation of site area.
Features of Metal Pipe Laser Cutter
1.The powerful cutting function of metal pipe laser cutter can meet the customer’s flat and pipe cutting requirements at the same time.

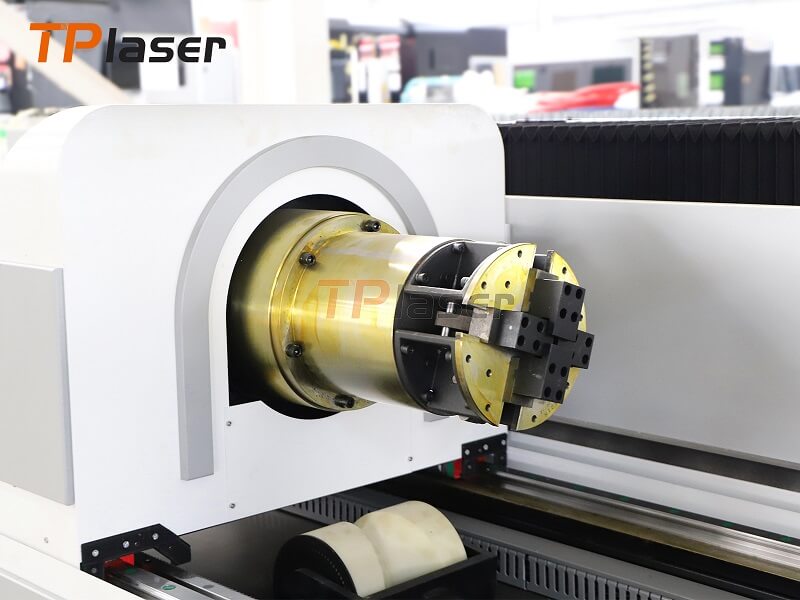

2.Adopt chuck and push-type cutting method, which has high centering accuracy and machining accuracy.

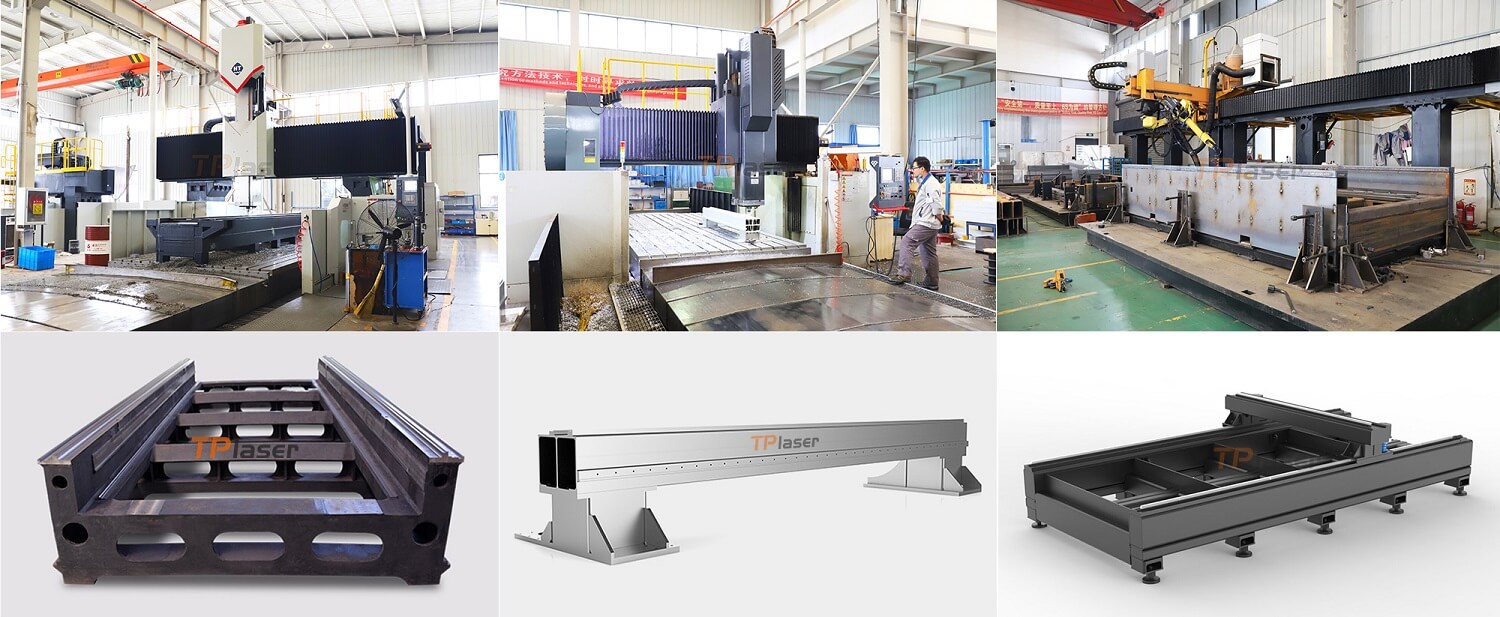

3.The machine tool ofmetal pipe laser cutteradopts the overall profile welding structure that has been analyzed and verified by CAE for many times. After annealing to eliminate internal stress, finish machining can better solve the stress caused by welding and machining, thereby improving the rigidity and stability of the equipment.
4.The gantry adopts a high-strength aluminum alloy integral casting structure, which has the advantages of light weight and good dynamic response.
5.The X/Y axis adopts a precision helical gear transmission mechanism, which can effectively ensure the accuracy and speed of the cutting process.
6.Better stability and longer service life.
7.Excellent processing system, friendly interface, convenient operation, and real-time feedback of processing status, which ensures the orderly progress of processing.
Application of Metal Pipe Laser Cutter
Applicable materials:
Metal pipe laser cutter is suitable for stainless steel, carbon steel, alloy steel, aluminum, copper, titanium and other metal pipes, and has excellent processing effect on various high-hard and brittle alloy materials.
Application industry:
Hardware processing, precision cutting, precision instruments, medical instruments, glasses and clocks, craft gifts, auto parts, instrumentation, etc.
Specifications of Metal Pipe Laser Cutter
| Model | TPF1530ER |
| Laser Power | 1000W~20000w |
| Laser Generate | IPG/Raycus/Max/JPT |

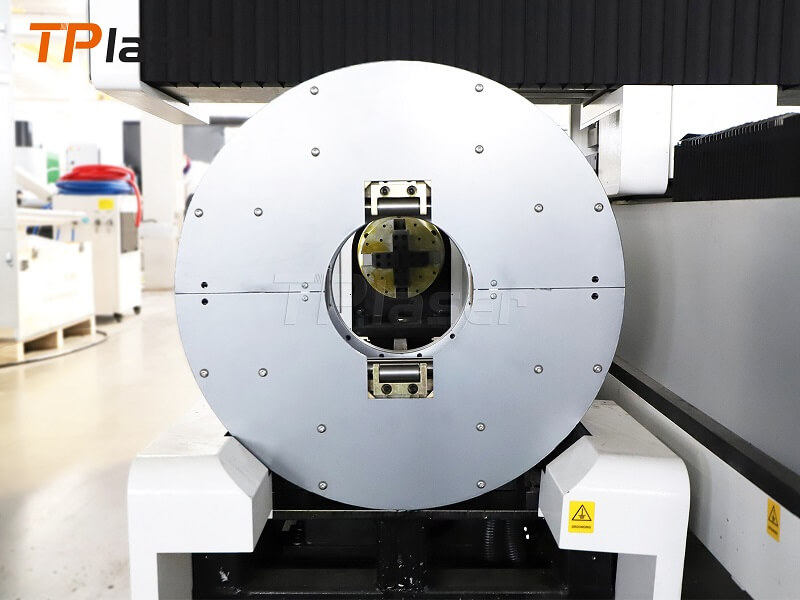

| Rotary Device | Diameter 50-500mm,Length 3000mm |
| Working Area | 1500*3000mm |
| Laser Head | Swiss Raytool Laser Head |
| Control System | Fuscut / Cypcut Control System |
| Moving Speed | 200m/min |
| Cutting Speed | 60m/min |
| Max.Acceleration | 2.8G |
| Positioning Accuracy / Repeat positioning Accuracy | ±0.02mm / ±0.01mm |
| Cooling System | Water Chiller Cooling |

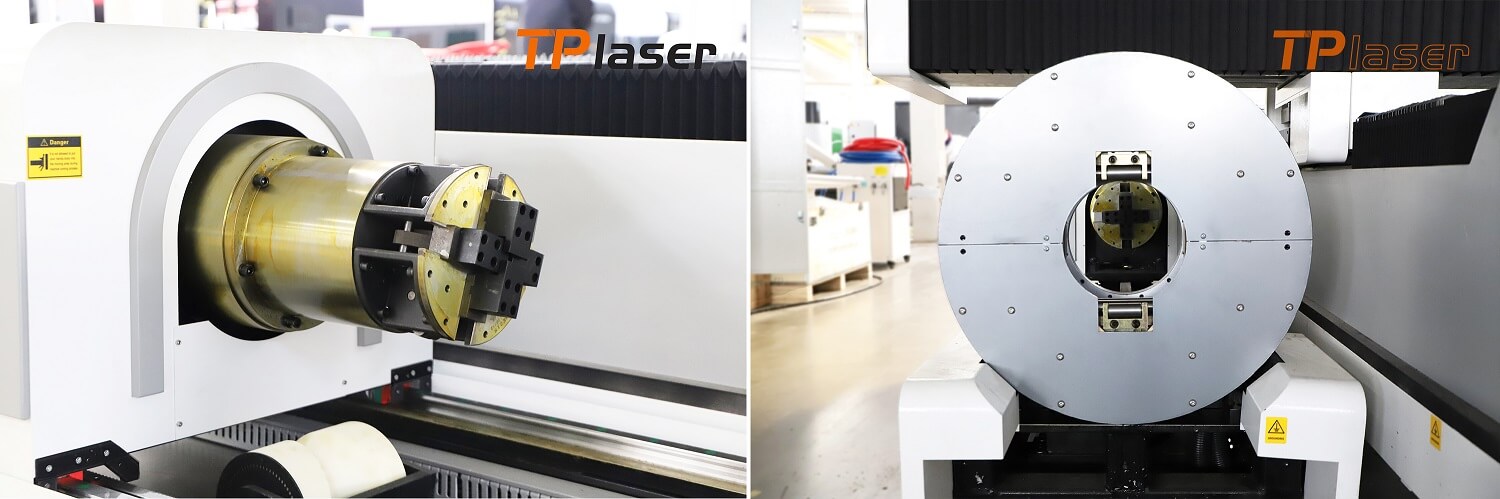

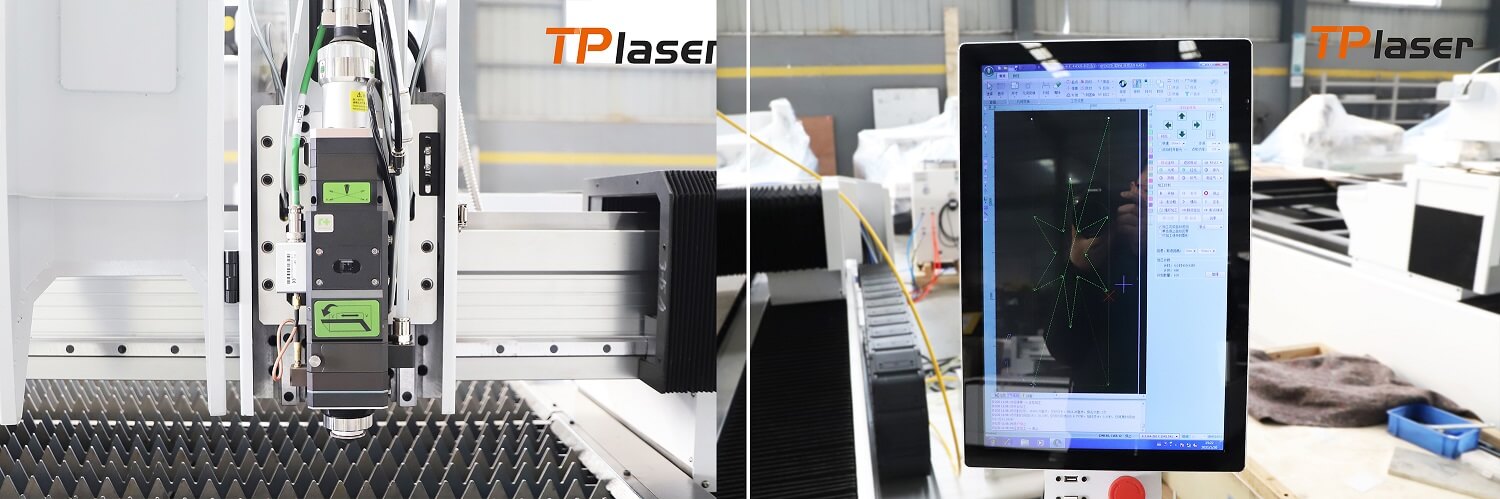

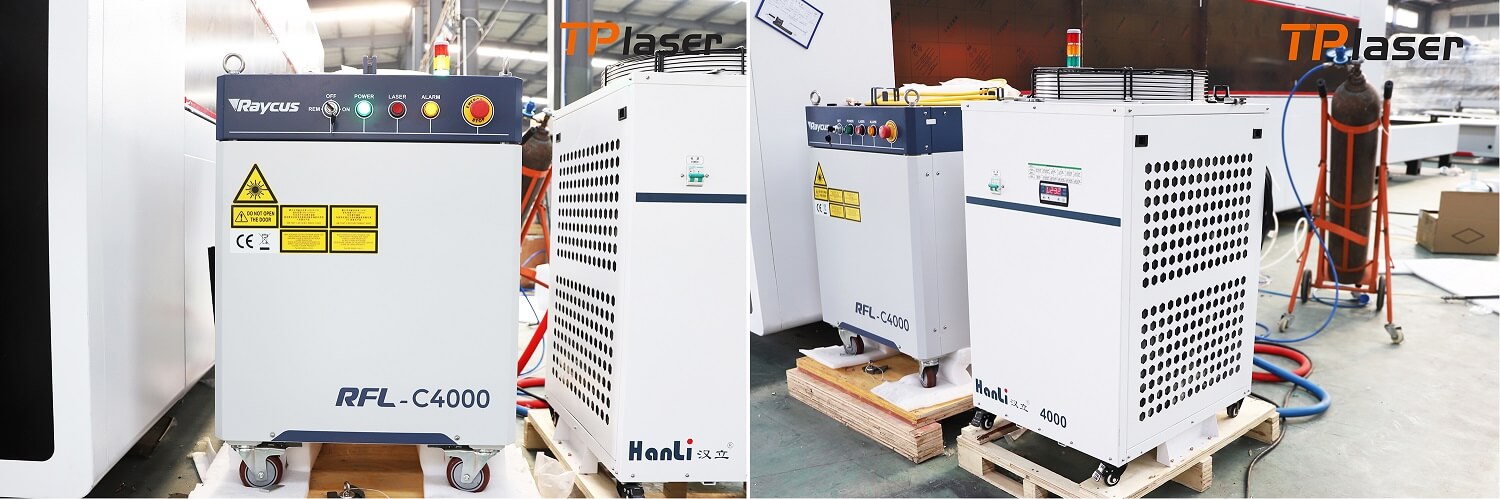

Parts Detail of Metal Pipe Laser Cutter

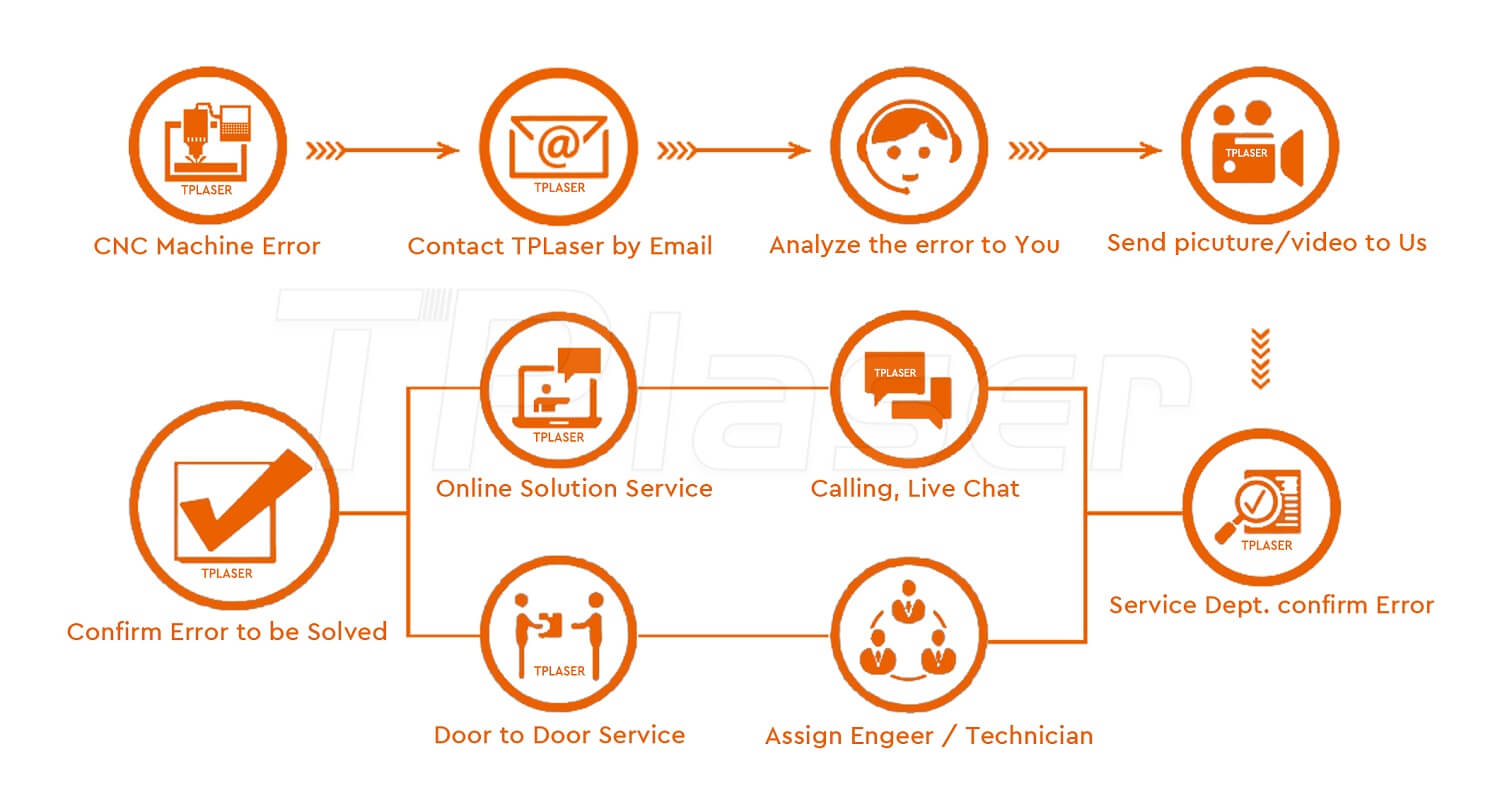

After Service of Metal Pipe Laser Cutter
1.We will supplymetal pipe laser cutterwith training video and user’s manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)
2.You can come to our laser machine factory for training.We will offer professional guidance. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days (Recommended)
3.Our engineer will do a door-to-door instruction training service at your local site.
Our Company

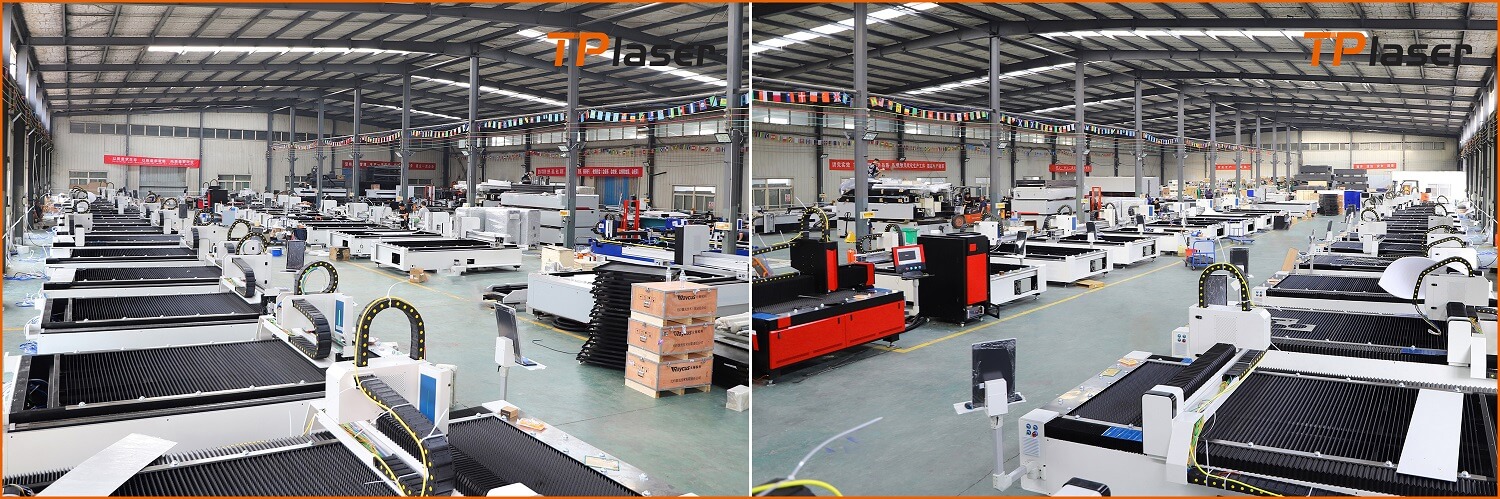

TPLaser adheres to the motto of “customer first, service first”. we believe in the spirit of enterprise“cooperation, win-win, appreciate and share “, and continue to attract top talents and precision laser technology to join us, TPLaser is a leading CNC equipment manufacturer in China and has launched 10 series products with an annual production capacity of 1,120 sets. With advanced CNC technology, perfect quality management system and convenient after-sales service in the network of mainland China and global markets.
If you are interested in any of our products or would like to discuss a custom order,please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
