Buyer's ReviewsMetal fiber laser cutting machine has the advantages of high precision, suitable for fine cutting of various metals, fast cutting speed, small heat-affected area, stable performance, ensuring continuous production, not easy to deform, smooth and beautiful cutting seam, and no need for post-processing.
Demonstration Video

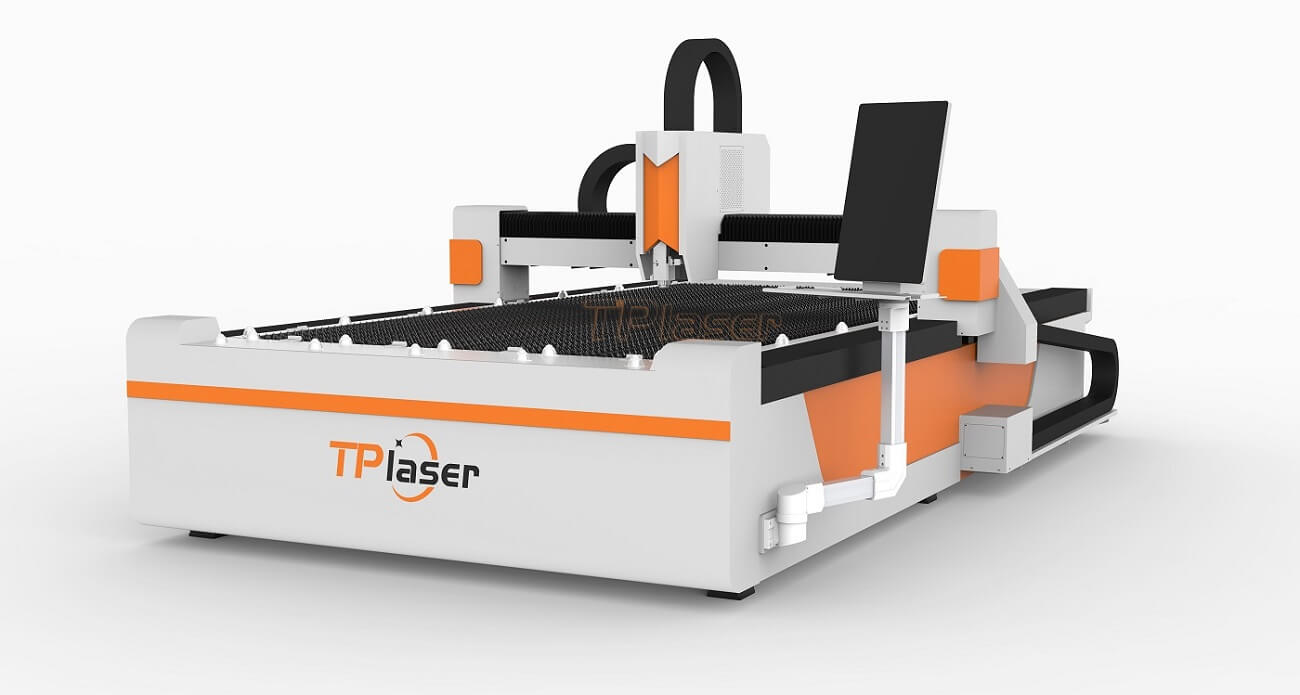

Product Descriptions

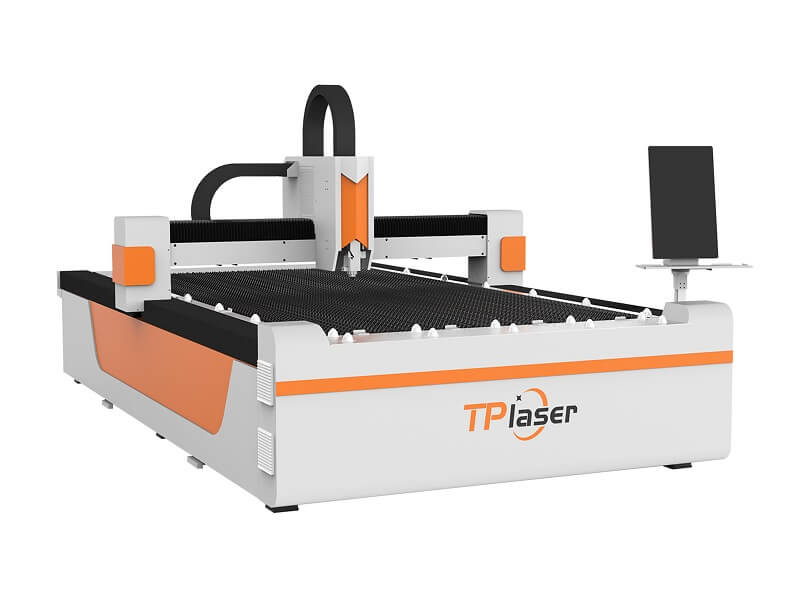

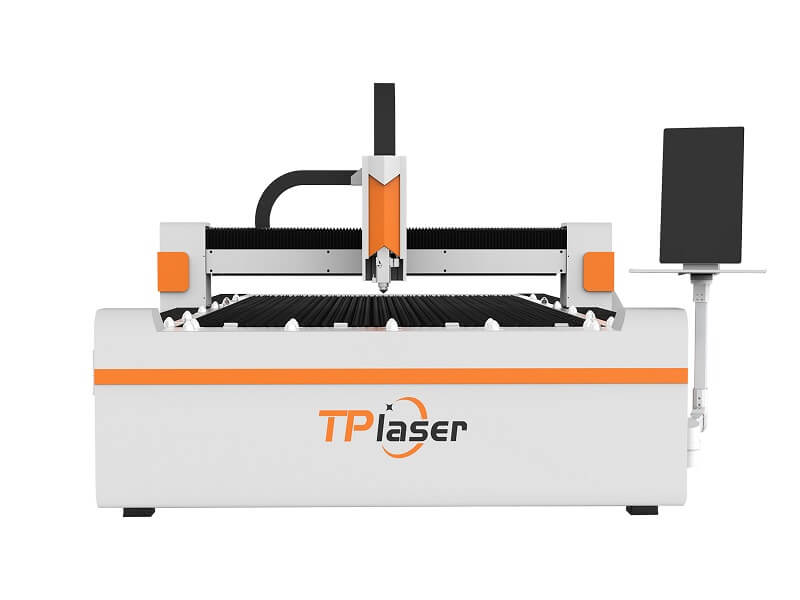

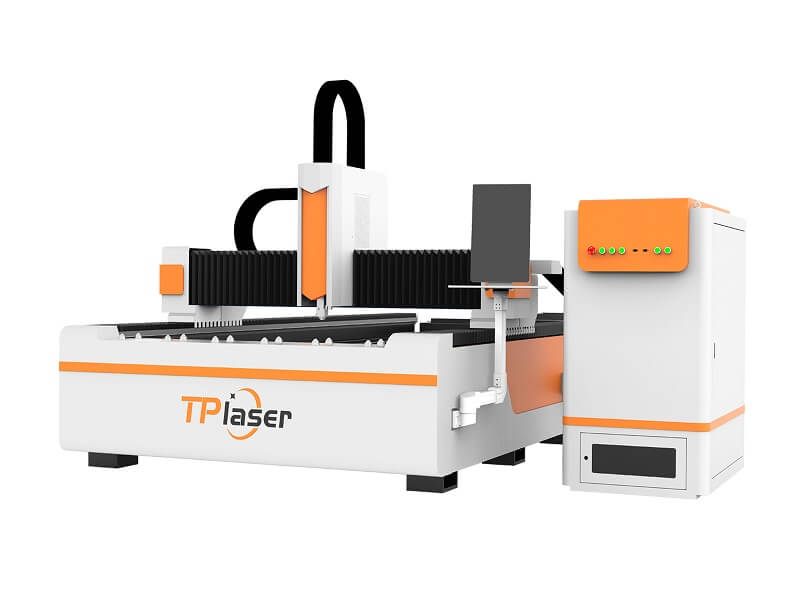

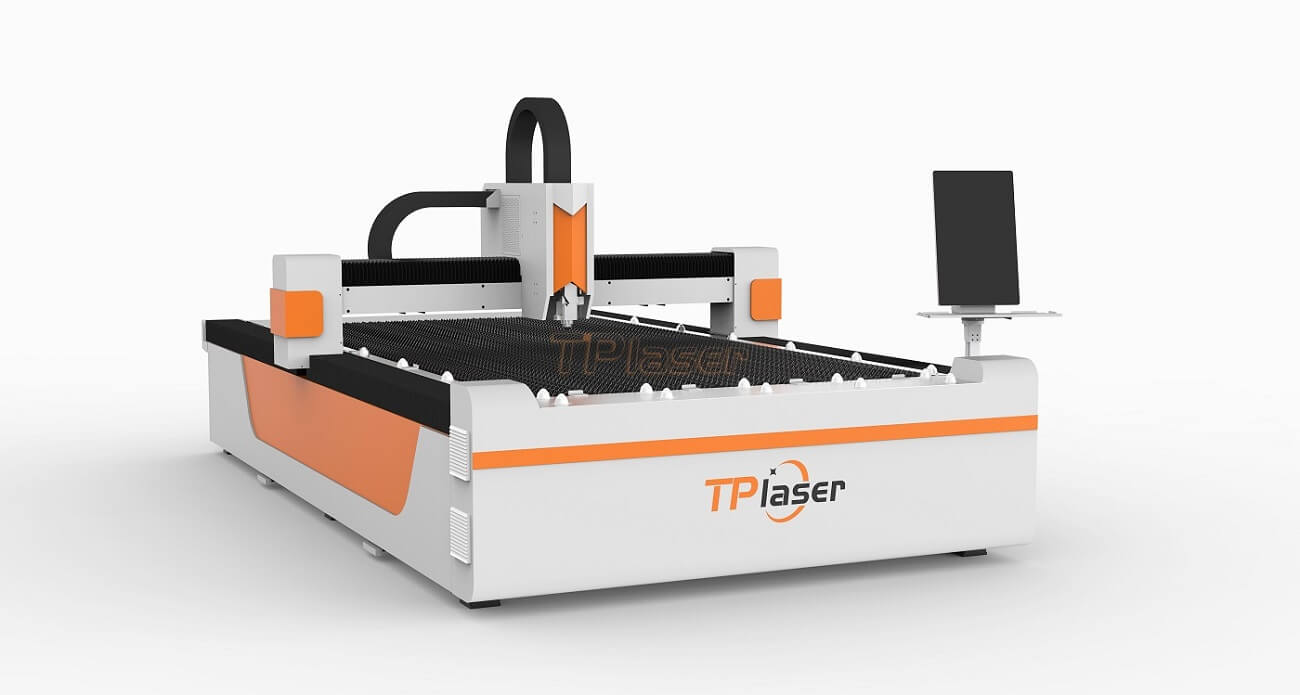

Metal fiber laser cutting machine adopts advanced fiber laser to output high energy density laser beam and gathers it on the surface of the workpiece, so that the area irradiated by the ultra-fine focus spot on the workpiece is instantly melted and vaporized, and the spot irradiation position is moved by the numerical control mechanical system. And realize automatic cutting. It is a high-tech equipment integrating advanced fiber laser technology, numerical control technology and precision mechanical technology.
Features of Fiber Laser Cutting Machine

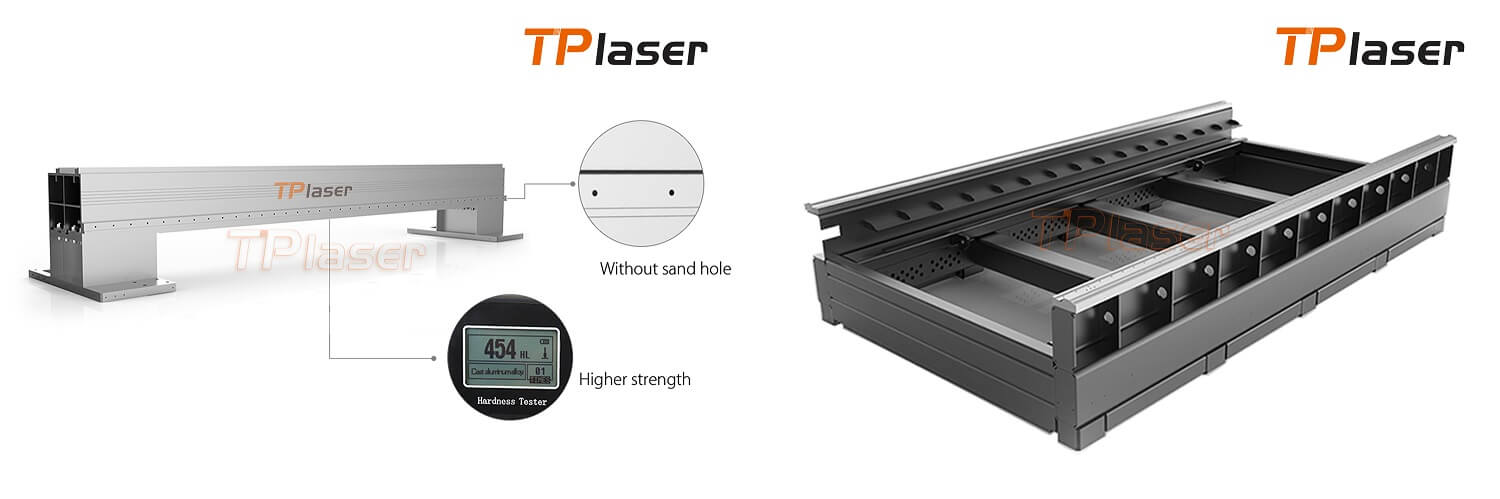

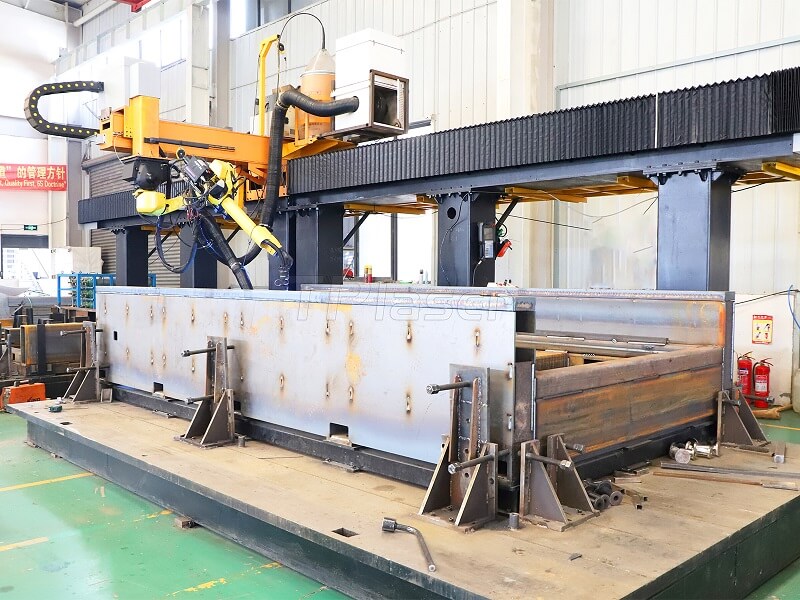

1.The metal fiber laser cutting machine adopts a gantry structure, a high-quality steel welded bed, a honeycomb-shaped high-strength beam, combined with excellent heat treatment and processing technology to ensure the rigidity of the machine tool and the stability of long-term use.

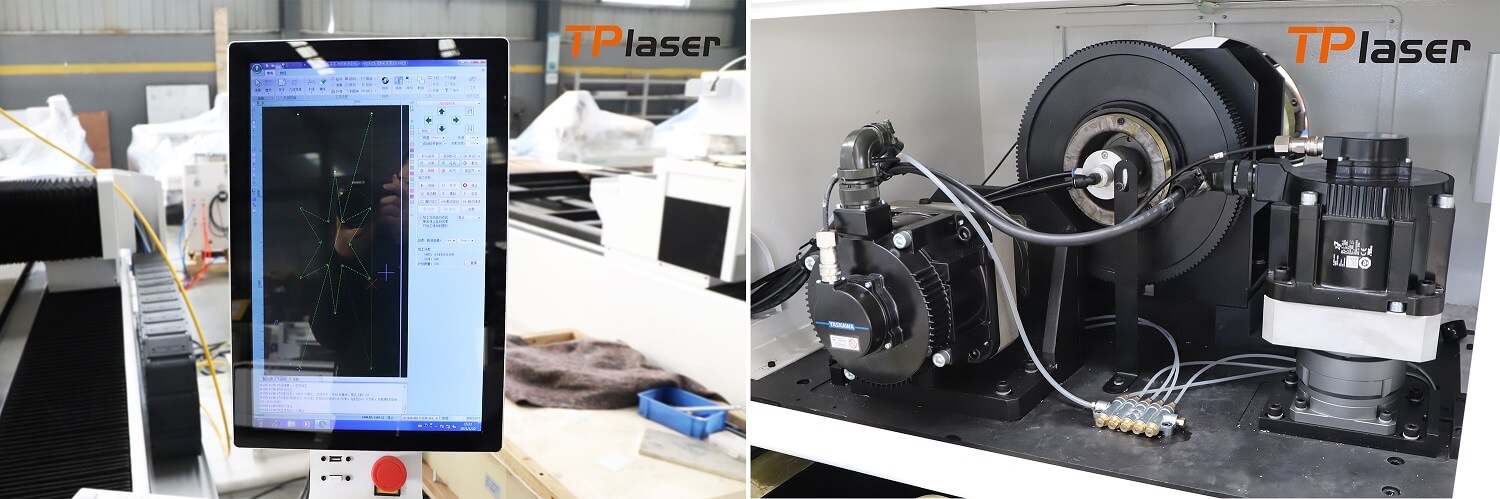

2.Adopt Cypcut control system, high performance, reliability and humanized and convenient operation.

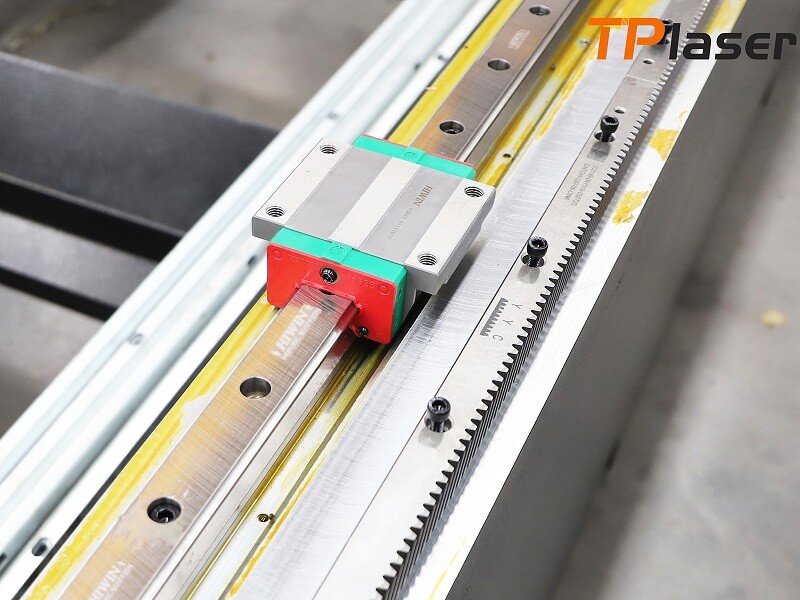

3.Servo motor double-drive precision reducer and rack and pinion structure ensure the high-quality dynamic performance of the equipment.
4.Advanced design of gas circuit control system, supporting imported pneumatic components, customers can freely use high and low pressure cutting auxiliary gas according to their needs, ensuring cutting quality and effectively reducing use costs.
Specification of Metal Fiber Laser Cutting Machine
| Model | TPF3020 |
| Working area | 1500*3000mm/2000*3000mm/2000*4000mm/2000*6000mm |
| Laser generate | Raycus/Max/IPG |
| Laser power | 1000w-20000w |
| Laser head | Raytools/Aut3tech/Precitec |
| Control system | Cypcut control system |
| Acceleration | 2.0G |
| Linkage Speed | 150m/min |
| Positional accuracy | ±0.02mm |
| Re-positional accuracy | ±0.01mm |
| Optional: | Automatic exchange platform |
| Enclosed protect cover | |
| Side rotary device (diameter: 120/170/220mm) |

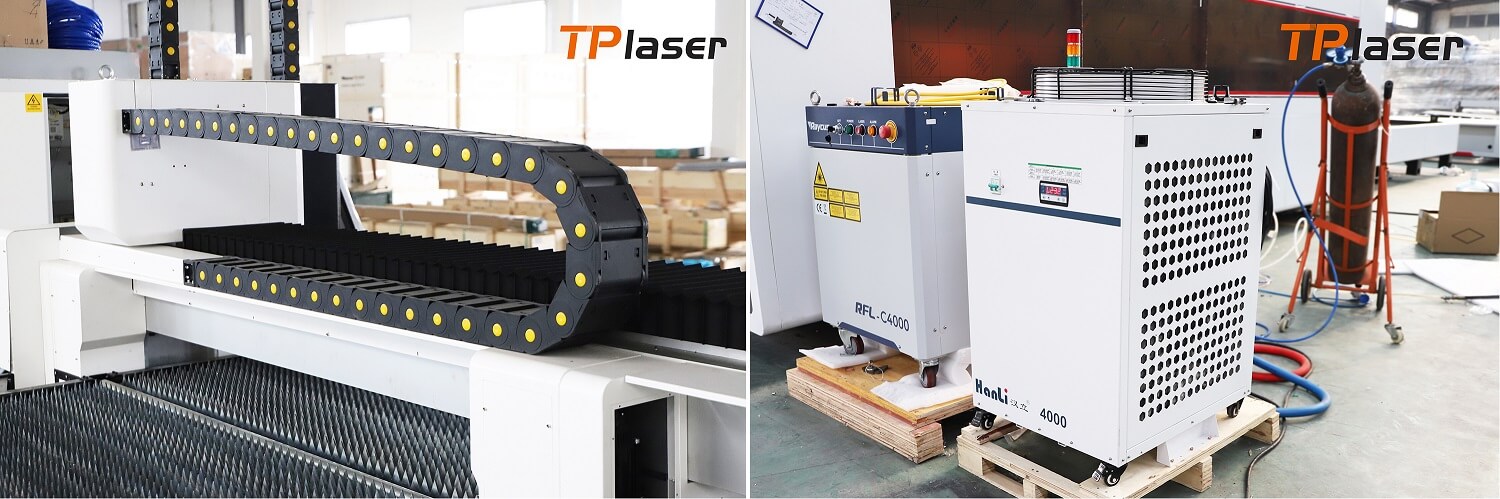

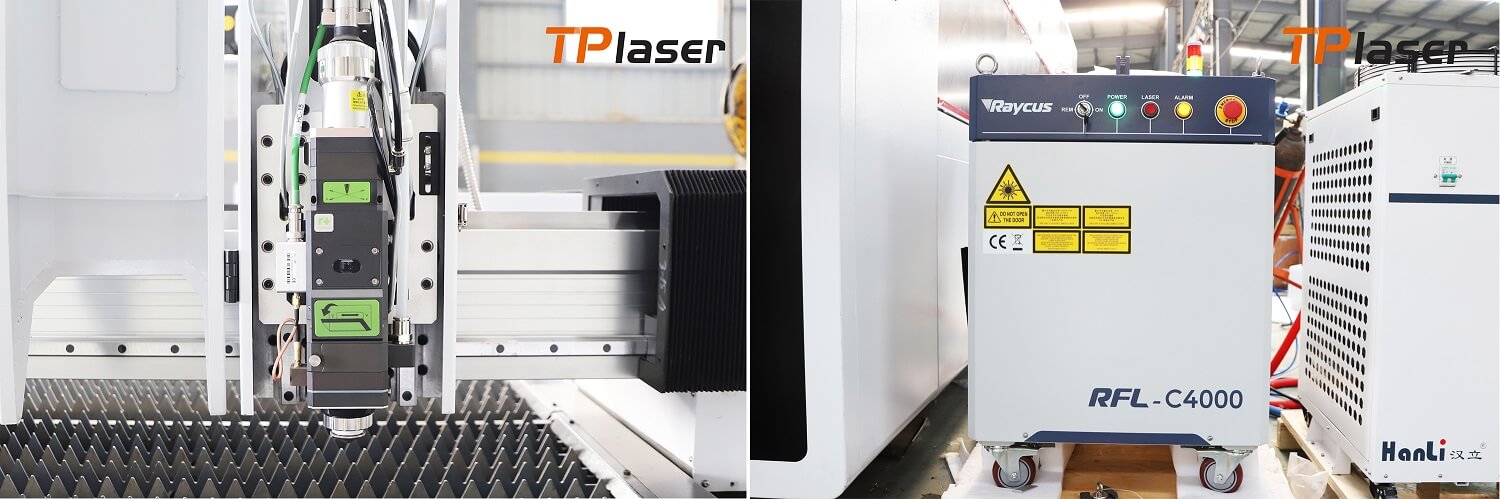

Parts of Metal Fiber Laser Cutting Machine
Advantages of Metal Fiber Laser Cutting Machine:
1.Beam quality: smaller focusing spot, finer cutting lines, higher work efficiency and better processing quality;
2.Fast cutting speed.
3.Using high-performance fiber laser, the performance is stable.
4.High electro-optical conversion efficiency, energy saving and environmental protection;
5.No laser working gas; optical fiber transmission, no need for reflective lenses; can save a lot of maintenance costs;
6.Optical fiber transmission, no need to adjust the optical path;
7.Small size, compact structure, easy to flexible processing requirements. The unique design of the internal technology of the fiber laser cutting machine, the special inner cavity, ensures the stable operation of the system and the constant and lasting power. The cutting gap is uniform, and the calibration and maintenance are convenient. The closed optical path guides light to ensure the cleanliness and service life of the lens.
Application of Metal Fiber Laser Cutting Machine
Applied Materials:

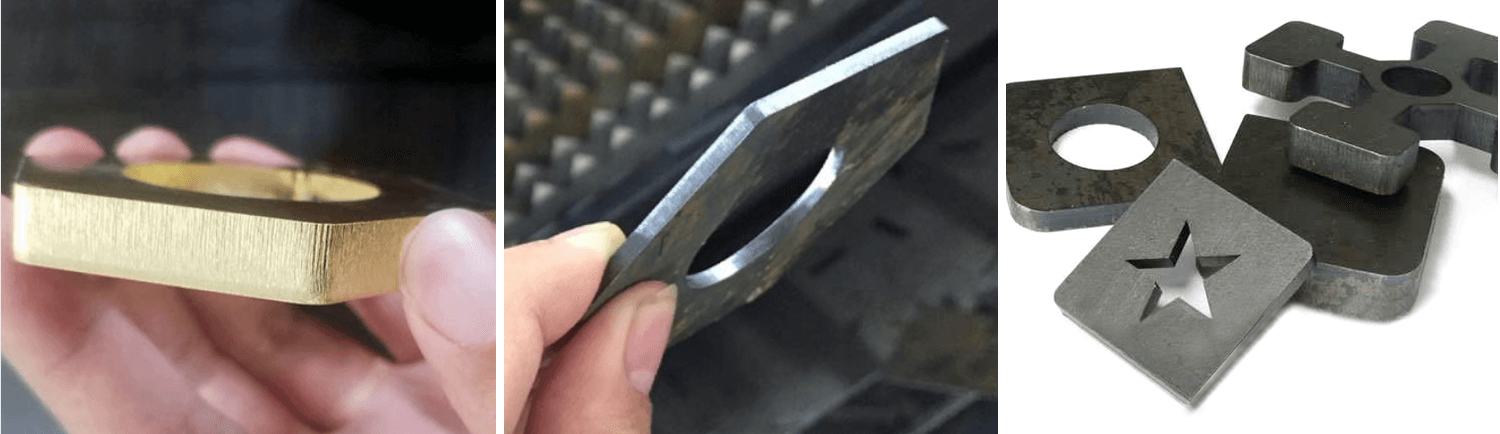

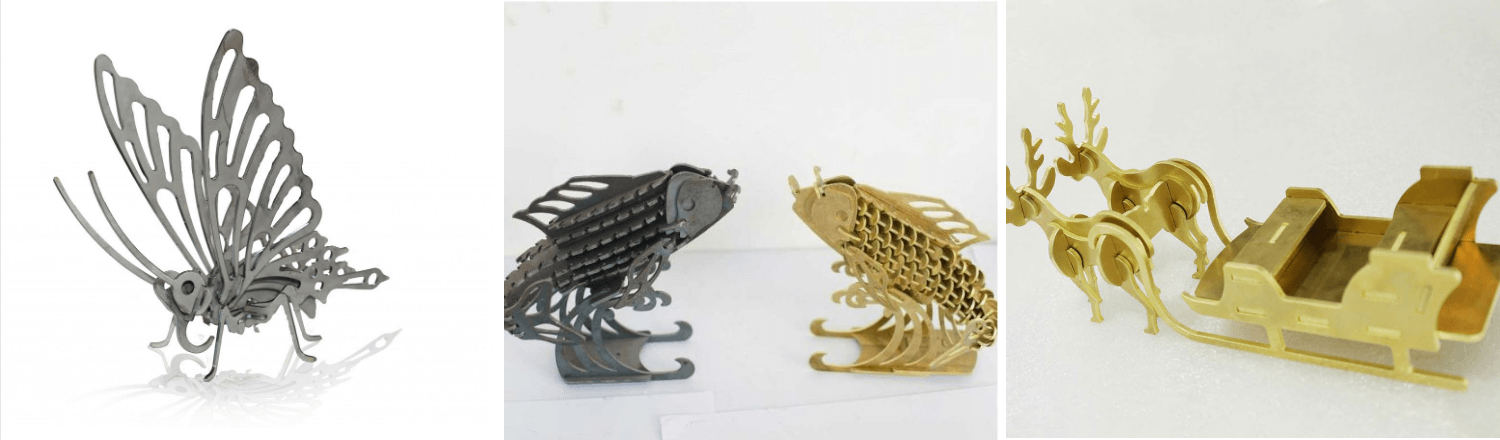

It can cut a variety of metal plates and pipes, mainly suitable for rapid cutting of stainless steel, carbon steel, manganese steel, copper plate, aluminum plate, galvanized plate, various alloy plates, rare metals and other materials.
Application industry: sheet metal, jewelry, glasses, mechanical equipment, lighting, kitchen and bathroom products, mobile communications, digital products, electronic components, clocks, computer accessories, instrumentation, precision instruments, metal molds, auto parts, craft gifts and other diversified industries.
Our company

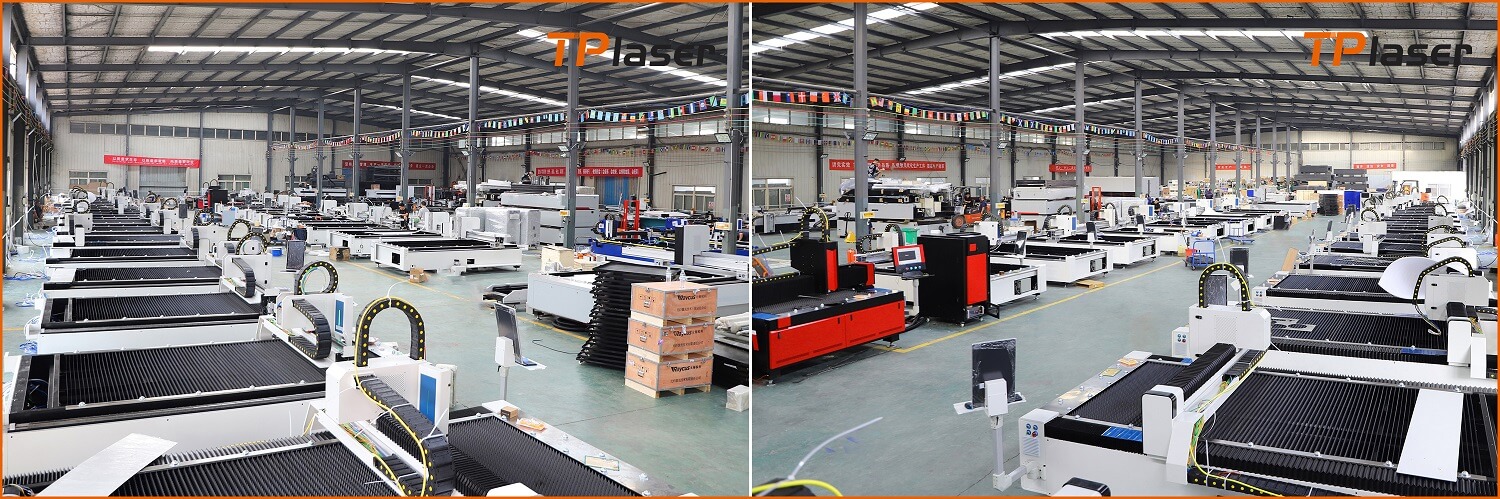

Shandong TPLaser Technology Co.,Ltd, is a leading CNC equipment manufacturer in China and has launched 10 series products with an annual production capacity of 1,120 sets. With advanced CNC technology, perfect quality management system and convenient after-sales service in the network of mainland China and global markets.
If you are interested in any of our products or would like to discuss a custom order,please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
