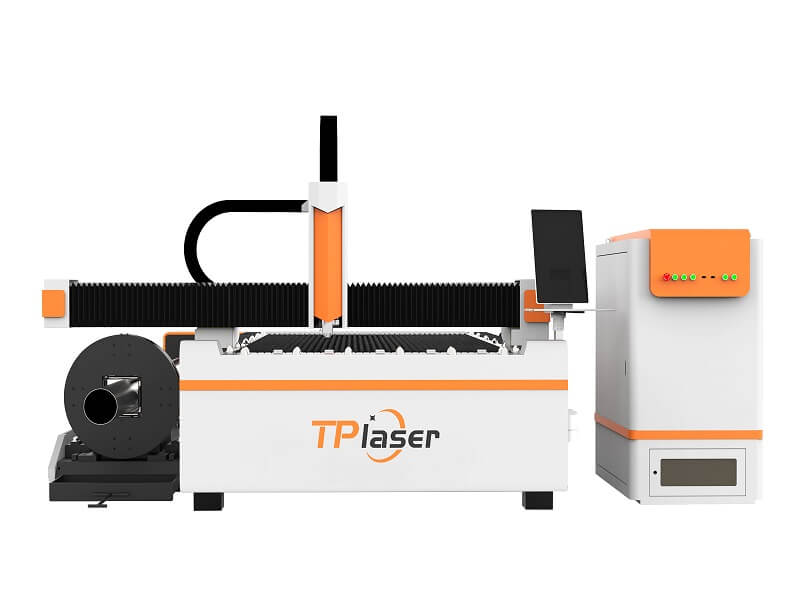

Buyer's ReviewsFiber laser metal cutting machine mainly faces the customers who need laser cutting of sheet metal and pipe. The machine can be used for general sheet metal cutting and the cutting of common square, round and rectangular tubes.
Demonstration Video
Product Descriptions

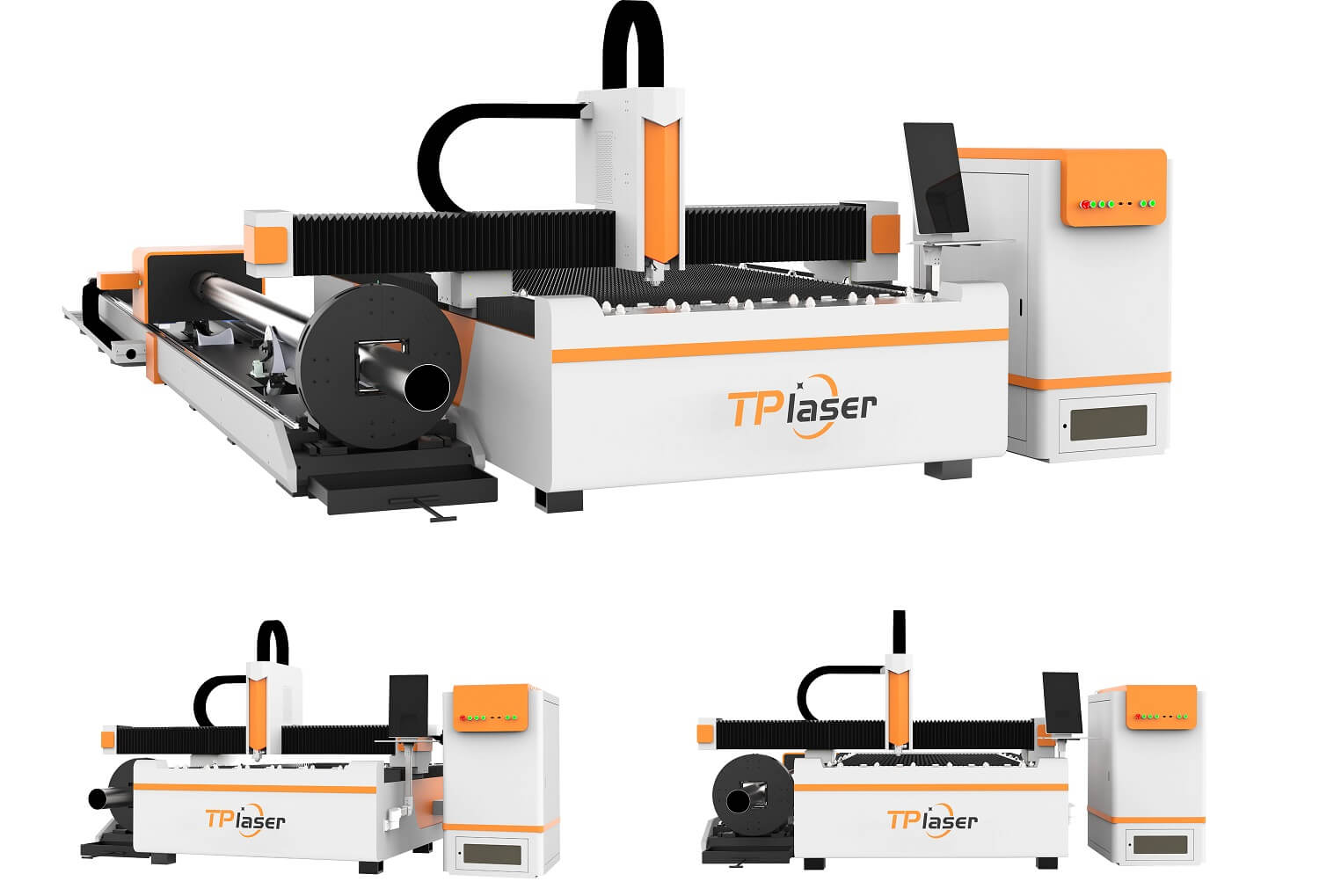

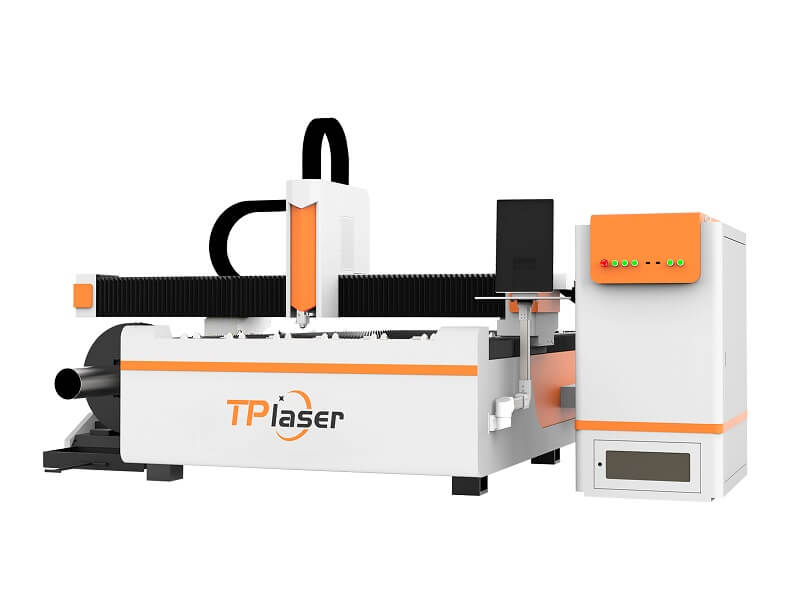

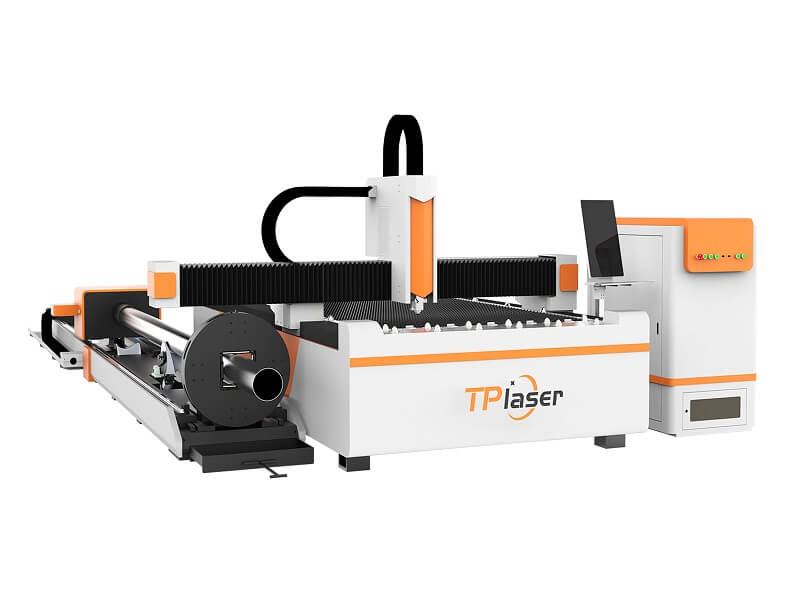

Fiber laser metal cutting machine can simultaneously perform high-speed and high-quality laser cutting of metal circular tubes, rectangular tubes, special-shaped tubes, metal flat plates of different thicknesses and other profiles. The new laser processing production line for pipes and plates not only realizes fully automatic production, but also breaks through the limitations of plane cutting. It can realize integrated cutting of pipes and plates, which greatly saves costs for customers.
Fiber Laser Metal Cutting Machine Features:
1.Fiber laser metal cutting machine can cut multiple cylindrical intersecting line holes of different directions and different diameters on the main pipe,
2.The fiber laser metal cutting machine satisfies the condition of eccentric and non-eccentric vertical intersection between the axis of the branch pipe and the axis of the main pipe.
3.The end of the cylindrical intersecting line can be cut at the end of the branch pipe to meet the eccentric and non-eccentric vertical intersection of the branch pipe axis and the main pipe axis.
4.Conditions for oblique intersection.
5.It can cut the oblique section end face at the end of the round pipe.
6.It can cut the end of the intersection line of the branch pipe that intersects with the annular main pipe.
7.Fiber laser metal cutting machine can cut square tube and 360 degree flip cutting.
8.Can cut square holes and waist-shaped holes on round pipes.
9.Can carry out all kinds of steel pipe truncation.
10.It can be carried out on special-shaped tubes such as square tubes, oval tubes, U-shaped tubes, rectangular tubes, etc.
11.Various graphics cutting.
12.Fast clamping and automatic centering can be realized.
13.It can realize the high-speed and high-precision cutting function of flat plate,
14.Flat format can be optional
Specifications of Fiber Laser Metal Cutting Machine
|
Model |
TPF1530ER |
|
Laser Power |
1000W~20000w |
|

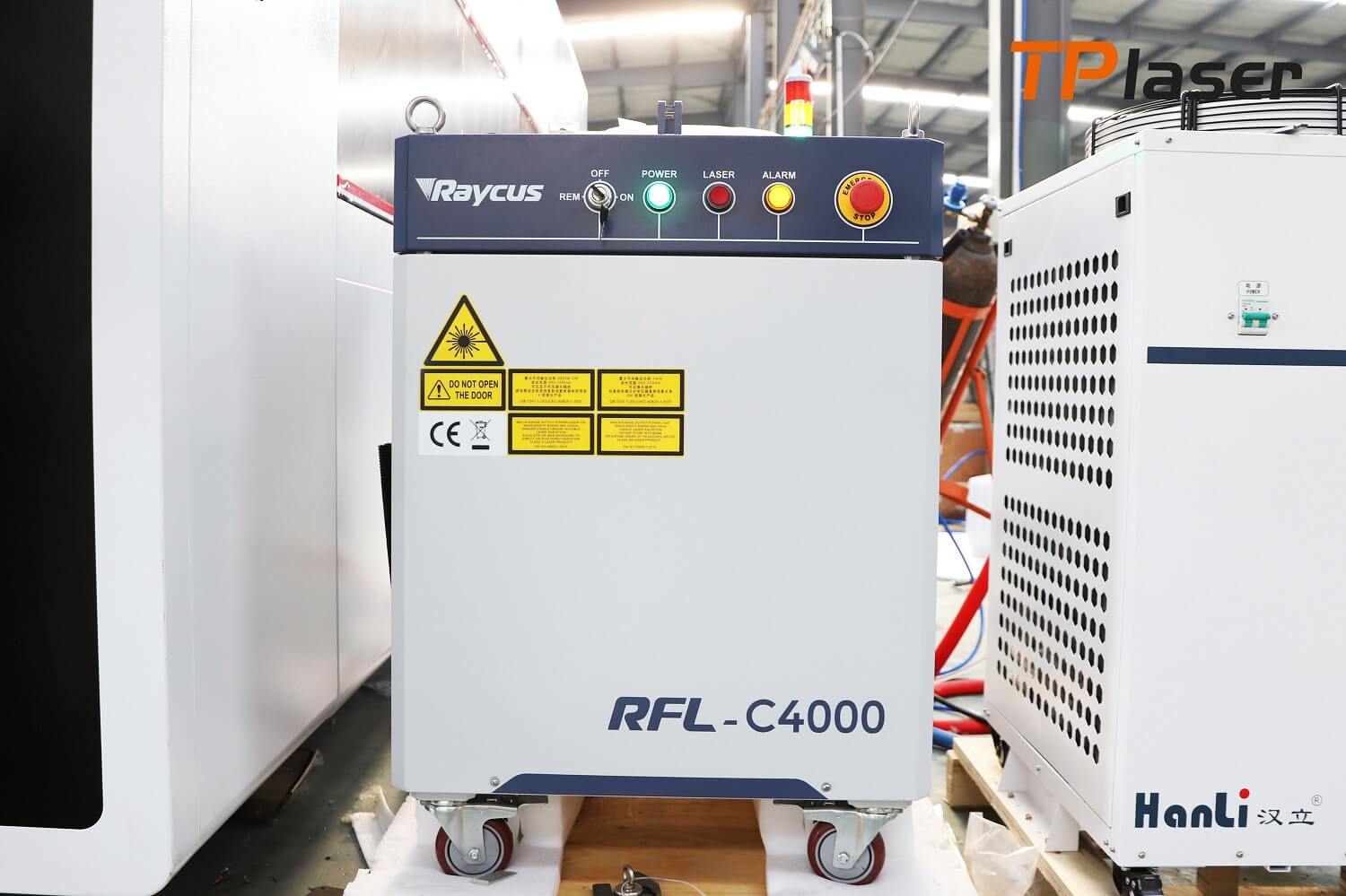

Laser Generate |
IPG/Raycus/Max/JPT |
|

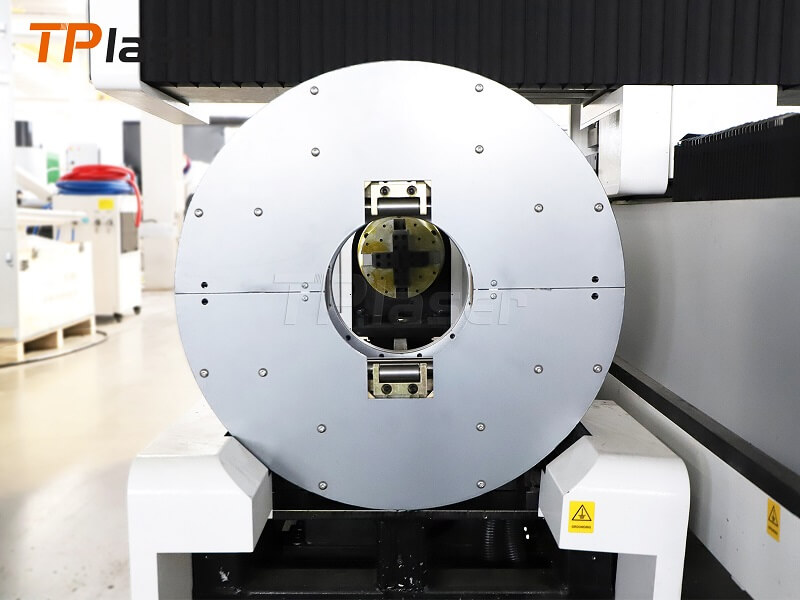

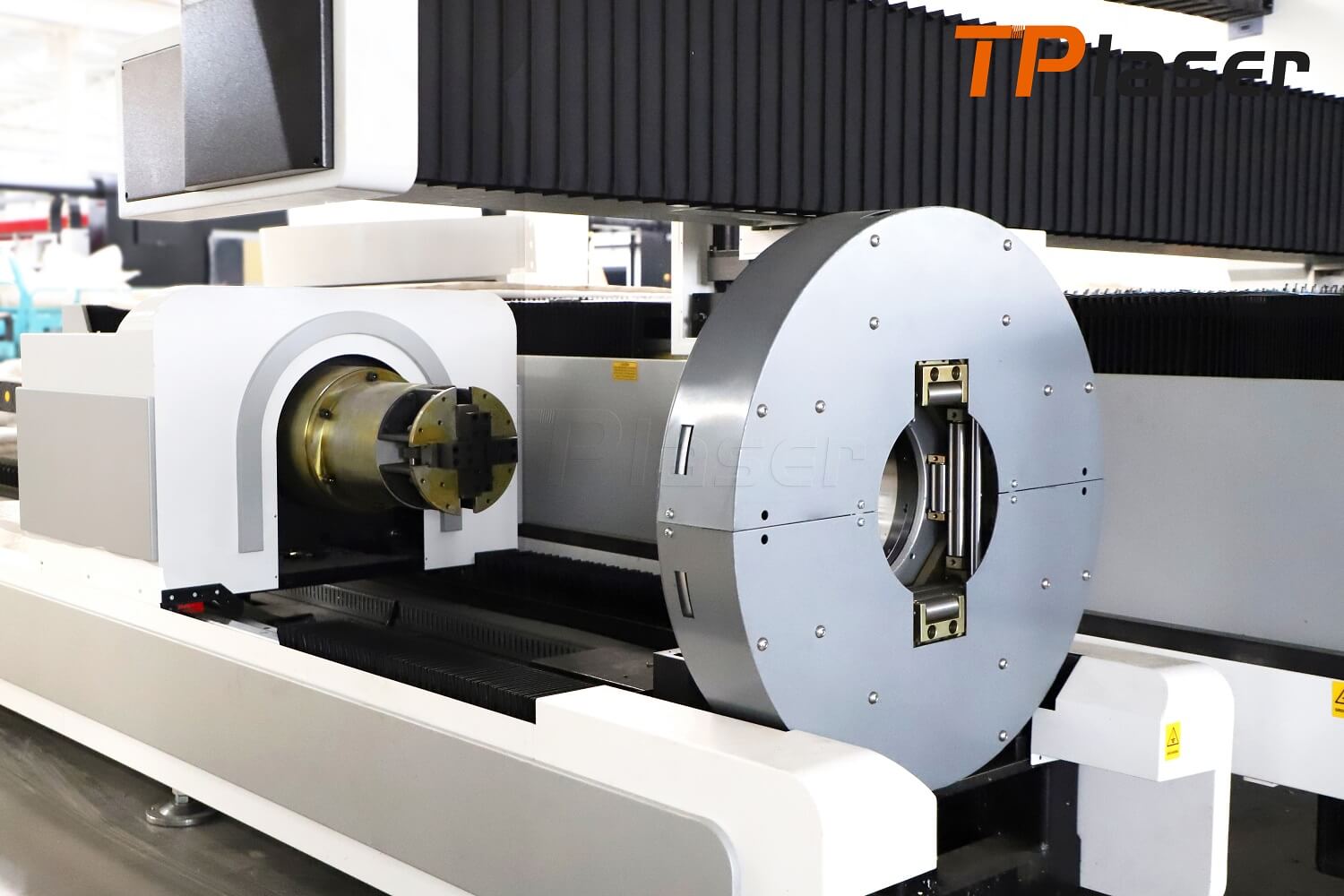

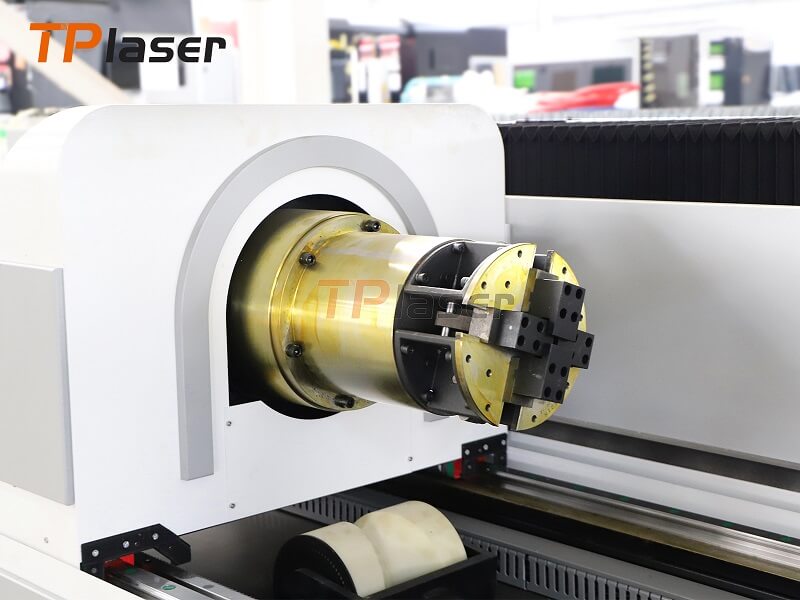

Rotary Device |
Diameter 50-500mm,Length 3000mm |
|
Working Area |
1500*3000mm |
|

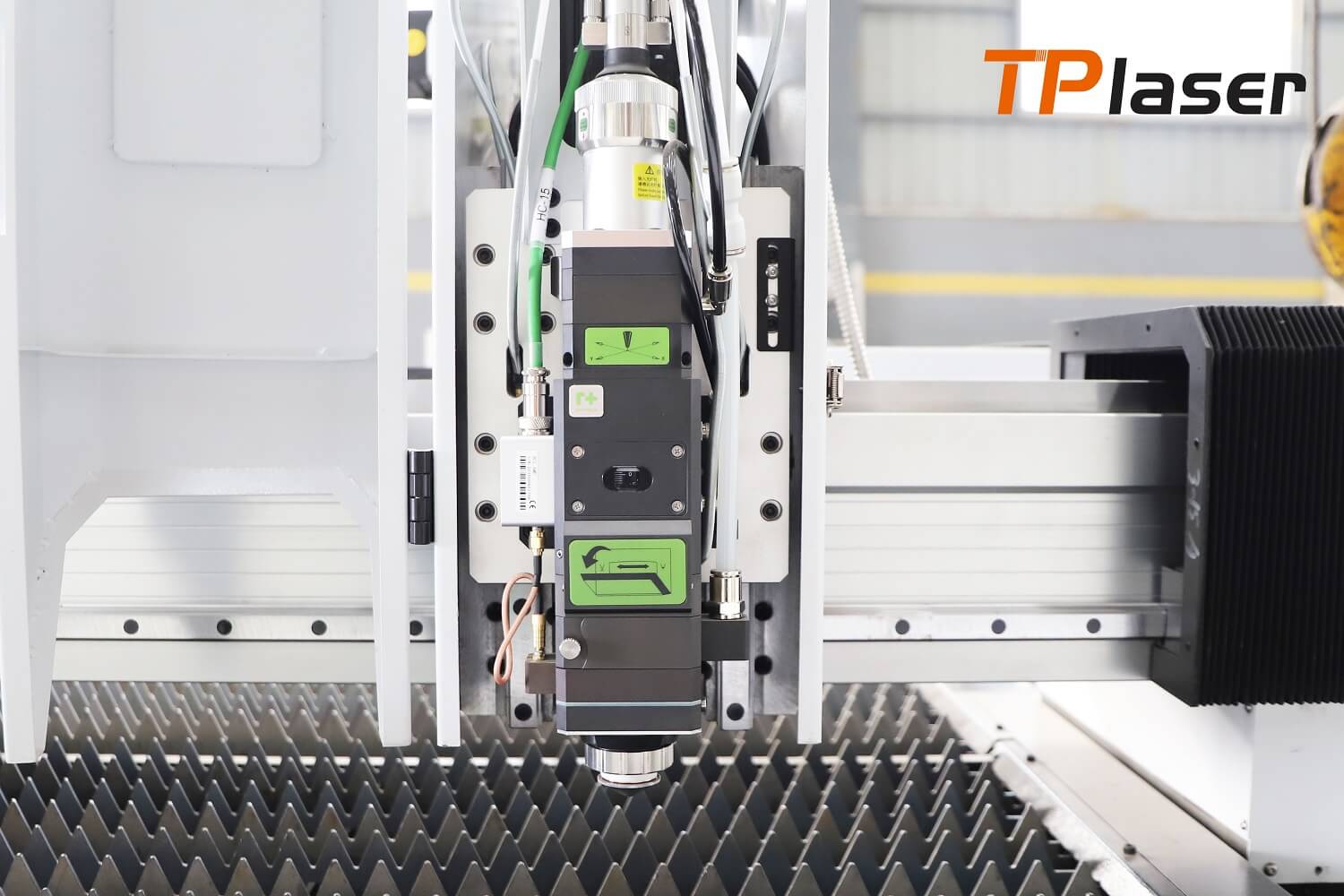

Laser Head |
Swiss Raytool Laser Head |
|

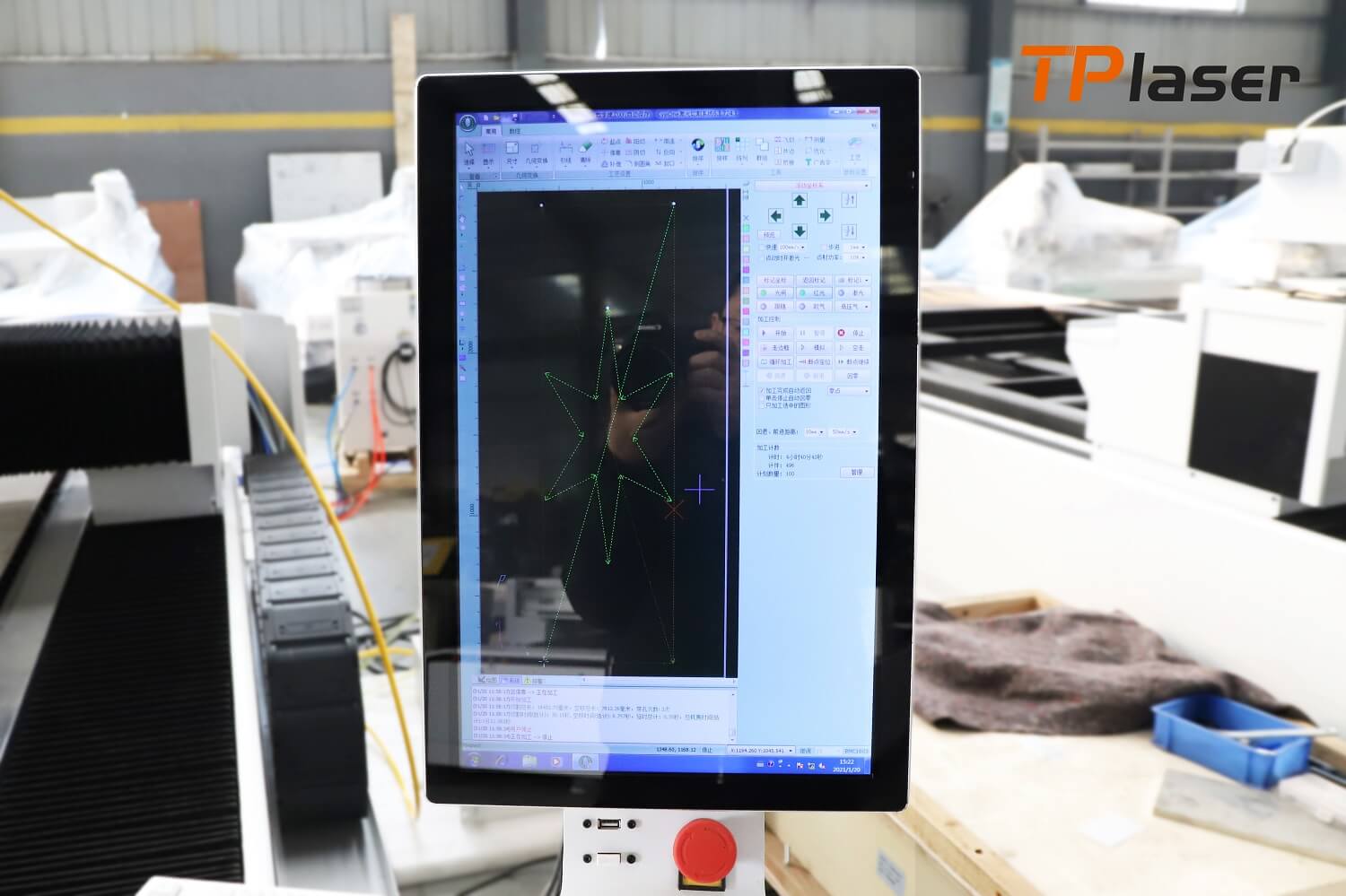

Control System |
Fuscut / Cypcut Control System |
|
Moving Speed |
200m/min |
|
Cutting Speed |
60m/min |
|
Max.Acceleration |
2.8G |
|
Positioning Accuracy / Repeat positioning Accuracy |
±0.02mm / ±0.01mm |
|
Cooling System |
Water Chiller Cooling |

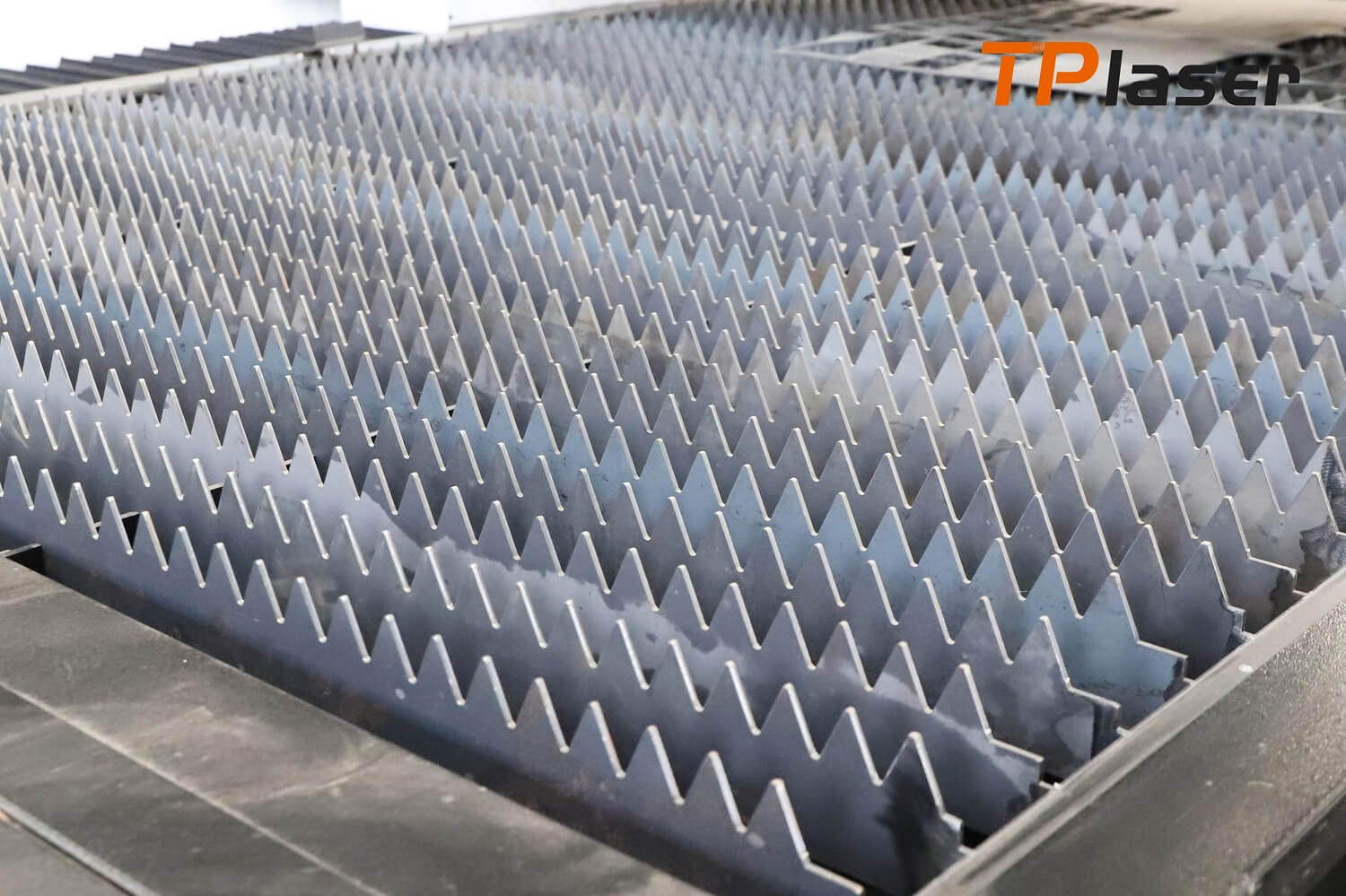

Parts of Fiber Laser Metal Cutting Machine

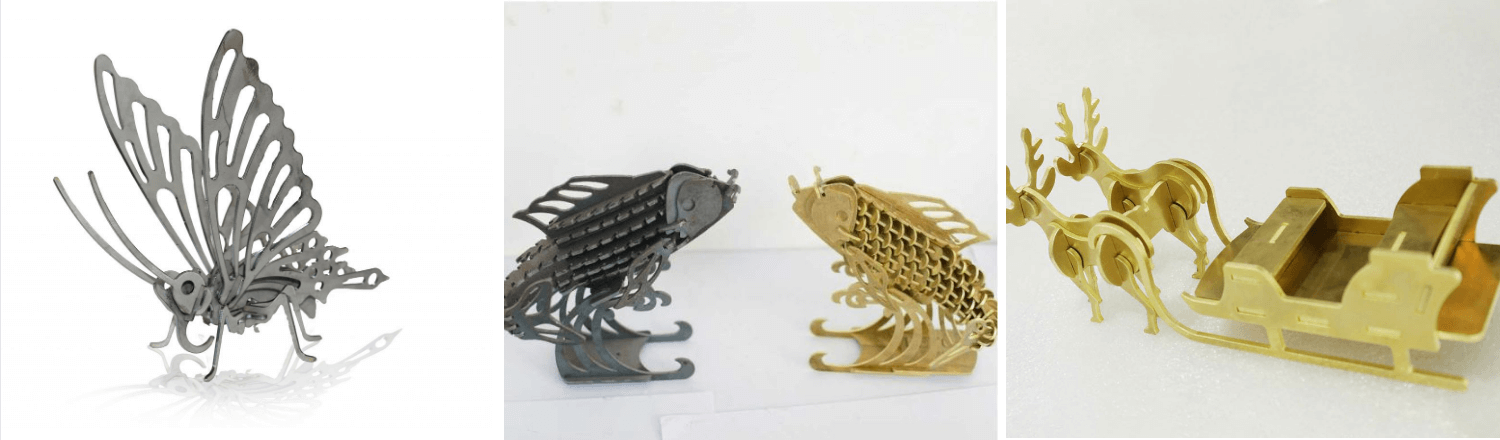

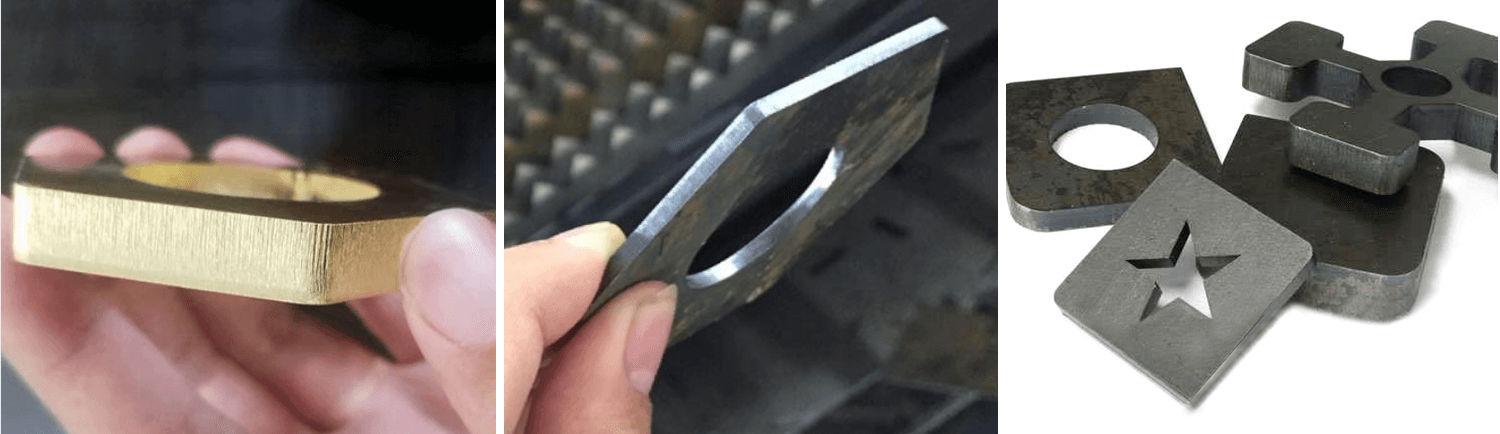

Application of Fiber Laser Metal Cutting Machine
Applicable industries
fiber laser metal cutting machine is suitable for bevel cutting, intersecting line cutting, truncation, engraving, perforation and flat plate cutting of pipes such as square pipes, round pipes, rectangular pipes, U-shaped pipes and hexagonal pipes. It is suitable for sheet metal processing, sports equipment, Home appliance manufacturing, kitchen utensils production and other industries.
Applicable materials

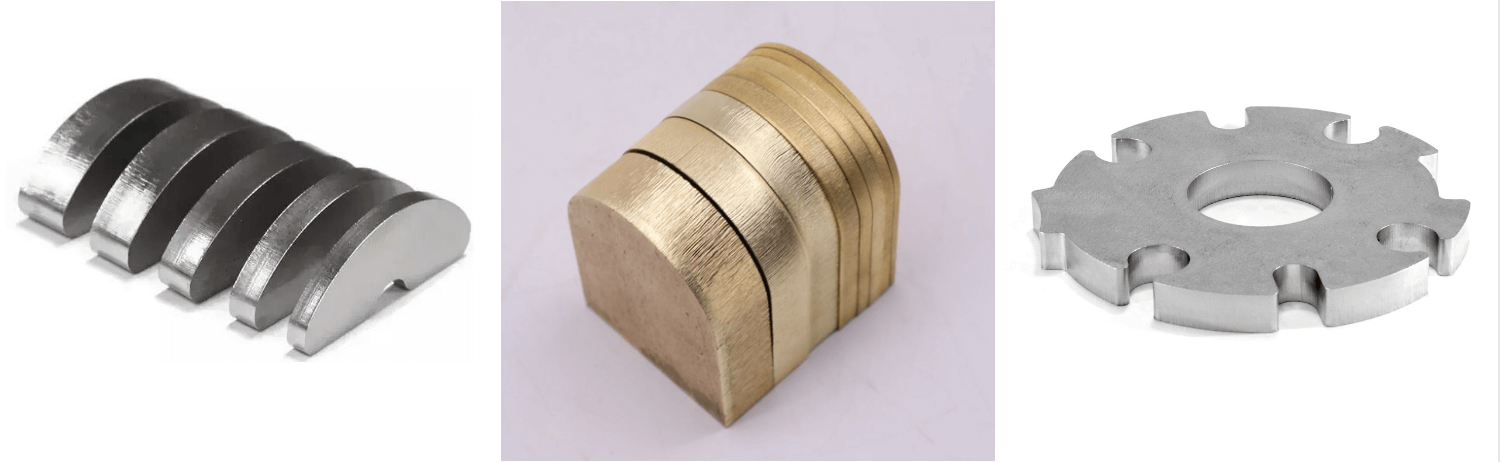

Carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, pickling sheet, galvanized sheet, brass, copper and other metal materials.
After Service of Fiber Laser Metal Cutting Machine
1.We will supply fiber laser metal cutting machine with training video and user’s manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by remote,such as TeamViewer, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting. (Recommended)
2.You can come to our laser machine factory for training.We will offer professional guidance. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days (Recommended)
3.Our engineer will do a door-to-door instruction training service at your local site.
Why Choose TPLaser Fiber Laser Metal Cutting Machine

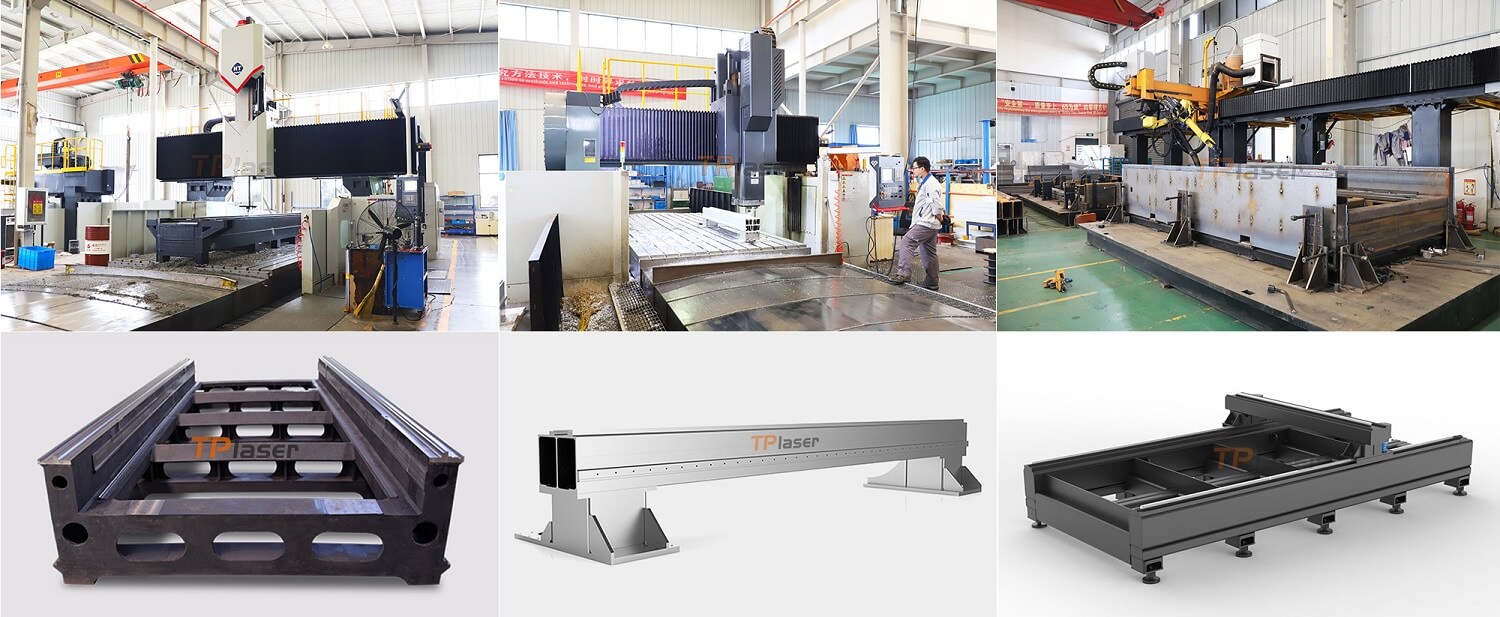

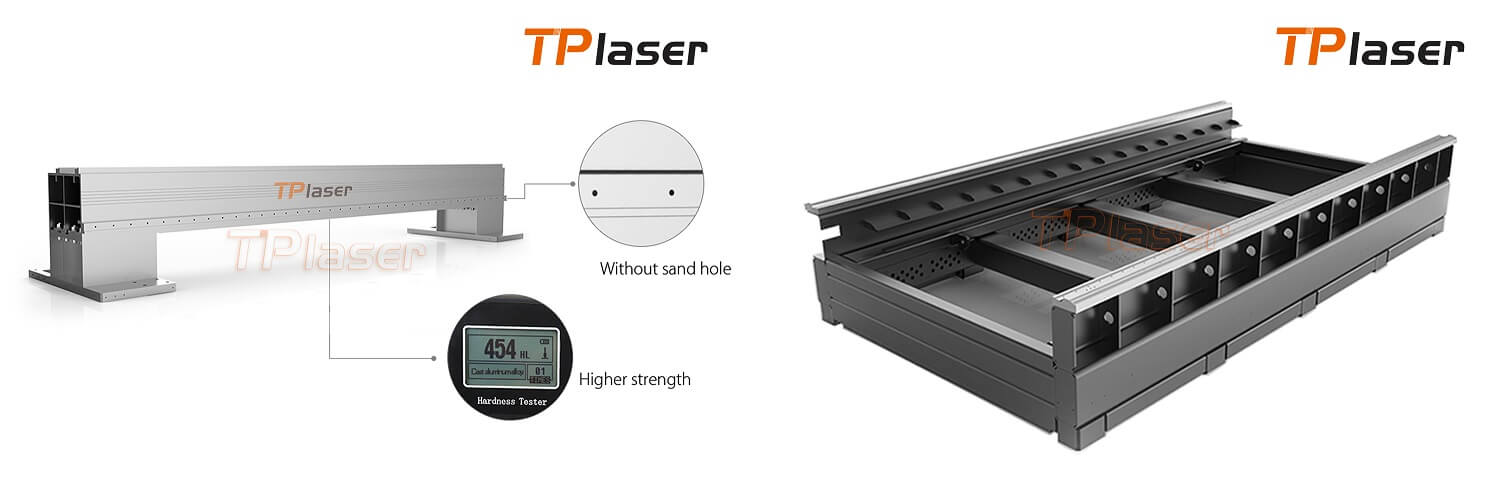

1.Adopt advanced 6-axis robot welding equipment to weld fiber laser metal cutting machine bed in all directions, with high precision, superior to 90% of manufacturers in the market.
2.The world famous large gantry drilling machine is used to cut and drill the fiber laser metal cutting machine bed to ensure the accuracy of the machine operation.
