    2022 Hot Sale Metal Channel Letter Laser Welding Machine

    Model: TPF-LW500
    Views: 1287 Views
    Brand:TPLaser
    Rating:
    0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
    (0 votes, average: 0.00 out of 5, rated)
    Standard Price: $5500 / Set
    Price Range: $5500 to $7500 / Set According to Configurations
    Supply Ability:  Sets / Month In stock!
    Payment Terms: T/T(Telegraphic Transfer), Mastercard, Visa, e-Checking

    Get A Free Quote

    x

    Product Introduction

    Buyer's Reviews

    This Channel Letter Laser Welding Machine application in a variety of precision words, mirror word,steel words, 3D aluminium words, titanium plane words etc.

    Demonstration Video

    Product Descriptions

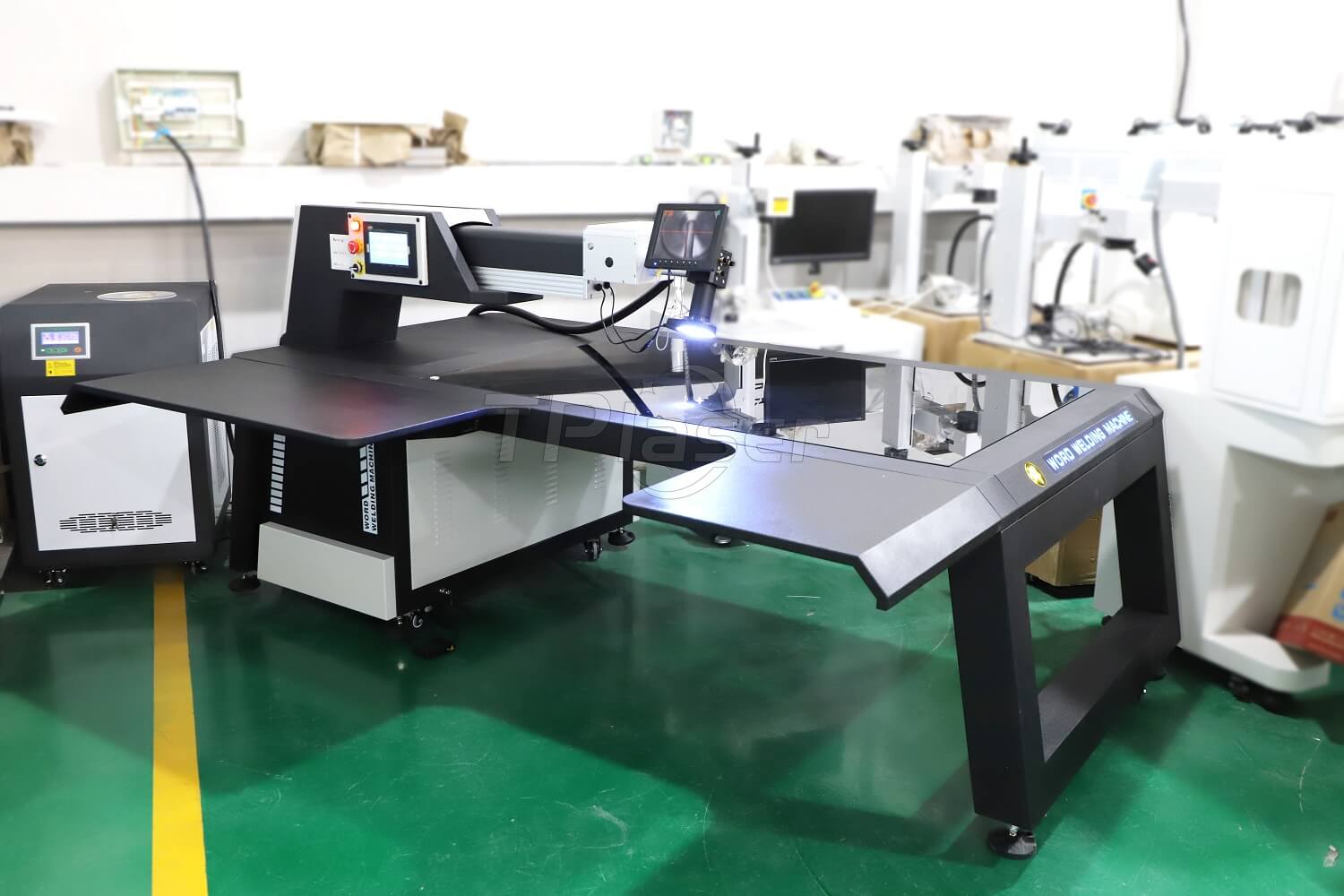

    channel letter laser welding machine price

    Features of Channel Letter Laser Welding Machine

    1. This channel letter laser welding machine Imported gilding Optical Chamber (not Ceramic), which have longer life with high energy efficiency;

    2. Fast working speed, professional jig ensures the focus fixed and makes welding easier. red light fast postioning, CCD disply .

    3. Latest adapted 7’ touch screen Diwin control panel makes operation more convenient.

    4. This channel letter laser welding machine can deal with complex, profiled, or tiny letters, Adjustable work table allows welding from small size to big size of work piece.

    5. Ultrafine locating rod makes corner welding easier without changing spot position.

    Channel Letter Laser Welding Machine Application Range:

    The working principle of channel letter laser welding machine system makes most use of the welding technology of high-energy laser energy and concentration of fixed point to deal with all the tiny part of the welding effectively. And it makes up the shortage of traditional soldering and argon arc welding technology. Thermal strain and postprocessing are avoided, without environmental pollution, which greatly improves the strength and quality of the connection tometal character or signs.

    Application in a variety of boutique words, precision words,mirror word,steel words, titanium words,galvanized sheet words, 3D aluminium words, stainless steel words, precision metal words, titanium plane words, titanium Gold words, seiko titanium, plane copper words, globe plane copper words, and so on. And such these advertisement word and all kinds of metal marking LED metal are welded and formed.

    Channel Letter Laser Welding Machine Specification:

    Model TPF-LW500
    Laser Power 200-500w
    Laser Wavelength NDs+YAG Rod
    Welding Mode Spot welding
                                                         Welding Frequency 0.5-40Hz
    Focal Spot Diameter 0.1-1.5mm adjustable
    Pulse Width 0.3ms-20ms adjustable
    Worktable Size (X=1600mm)*(Y=1000mm) Tempered Glass
    Welding Bath Depth 0.05-2mm(Depending on the material)
    Observation Method CCD Camera and Red light positioning
    Cooling Mode Water Chiller
    Consumables Xenon lamp, Protective lens, Water, Protective gas (or compressed air)
    Power Consumption 9KW
    Power Requirement 220V/ 50-60Hz
    Dimension & Weight 1850*8003*1340mm   &   450KG

    Machine Detail Parts

    channel letter laser welding machine detail

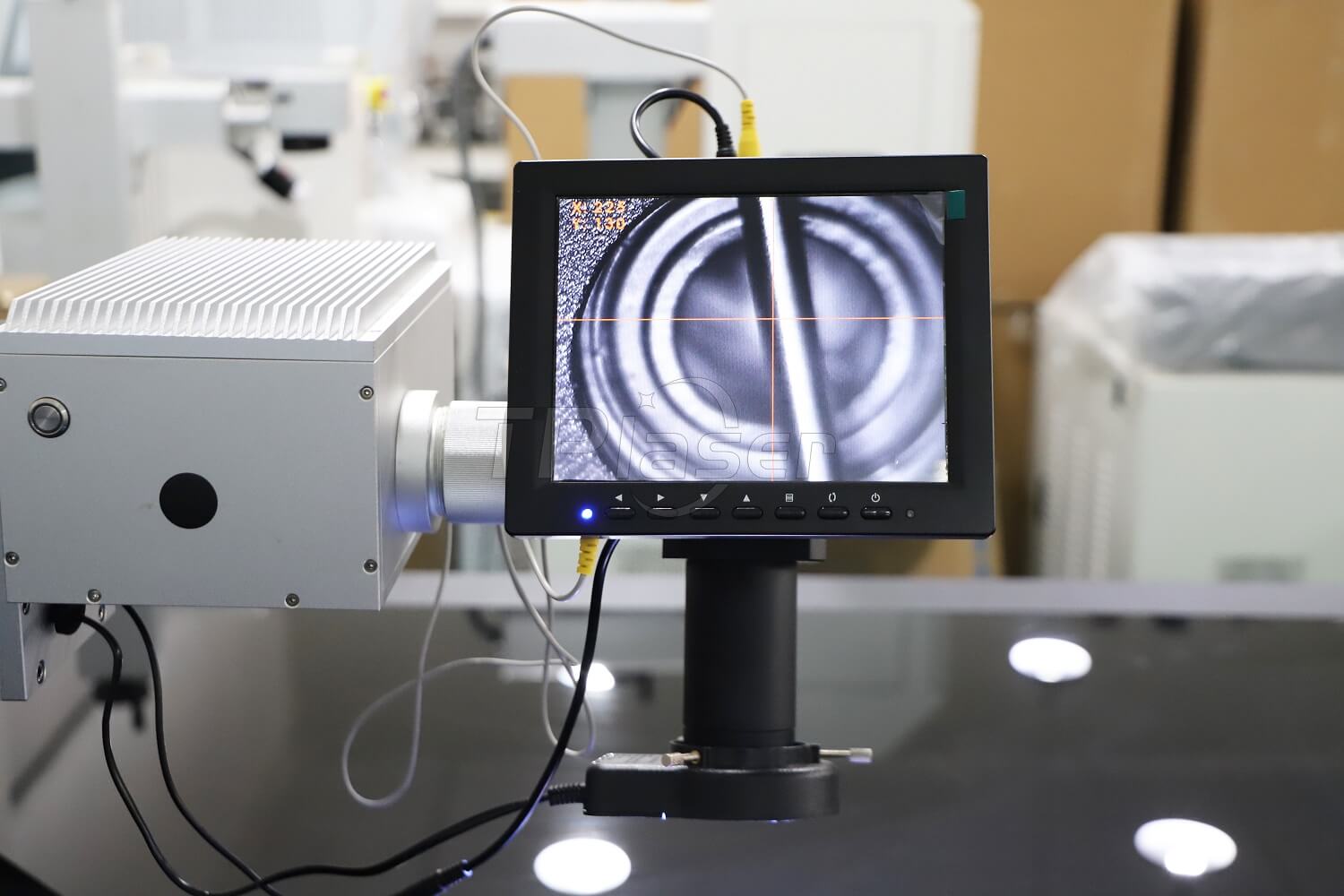

    The CCD camera can photo-shot the welding details screen and red pointerand transmit the signal to LCD ScreenThe welding effect is more clear and intuitive.

    channel letter laser welding machine CCD

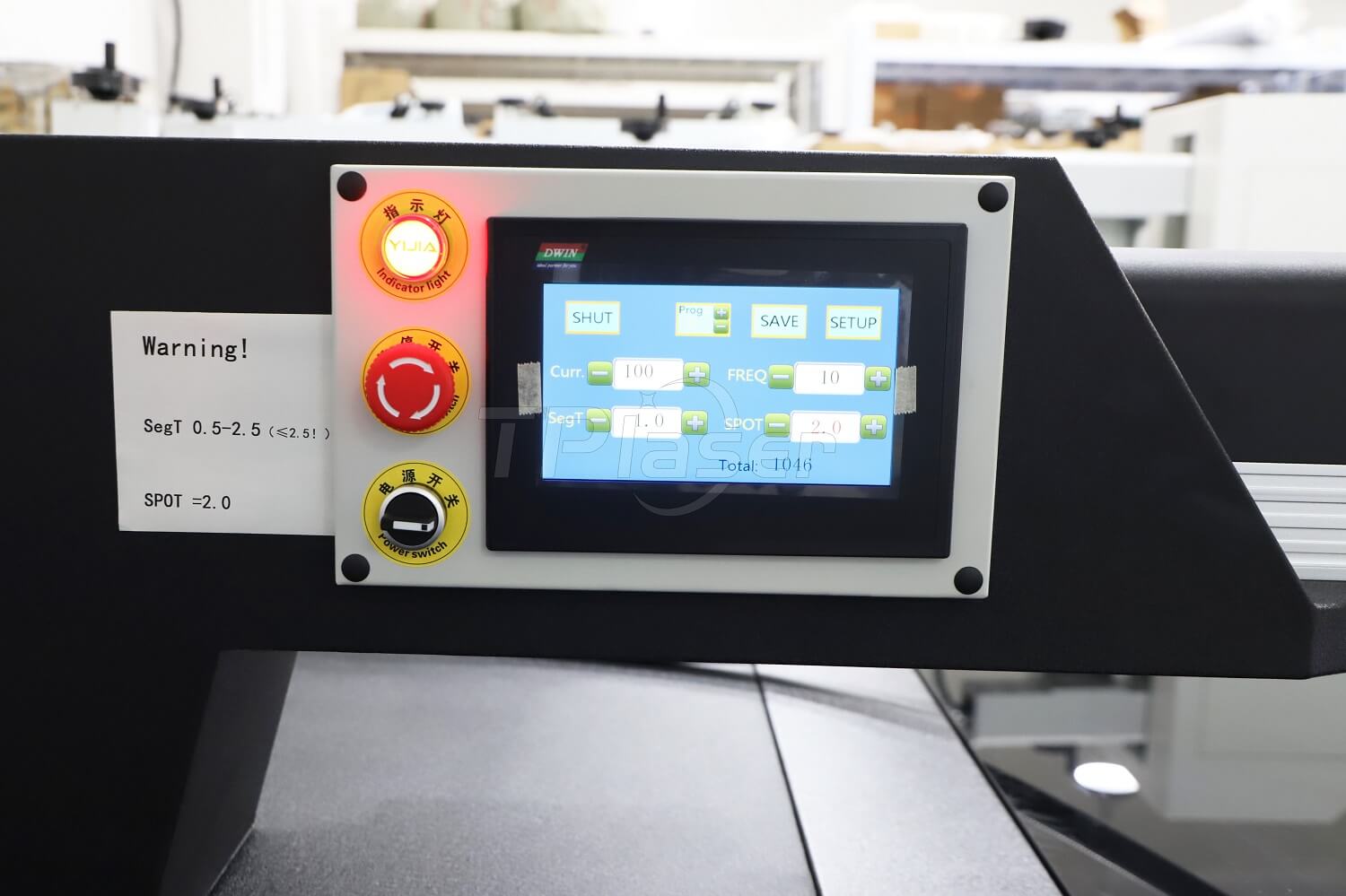

    China Dwin professional channel letter laser welding machine control system, easy to operate, makes operation more convenient.

    channel letter laser welding machine control system

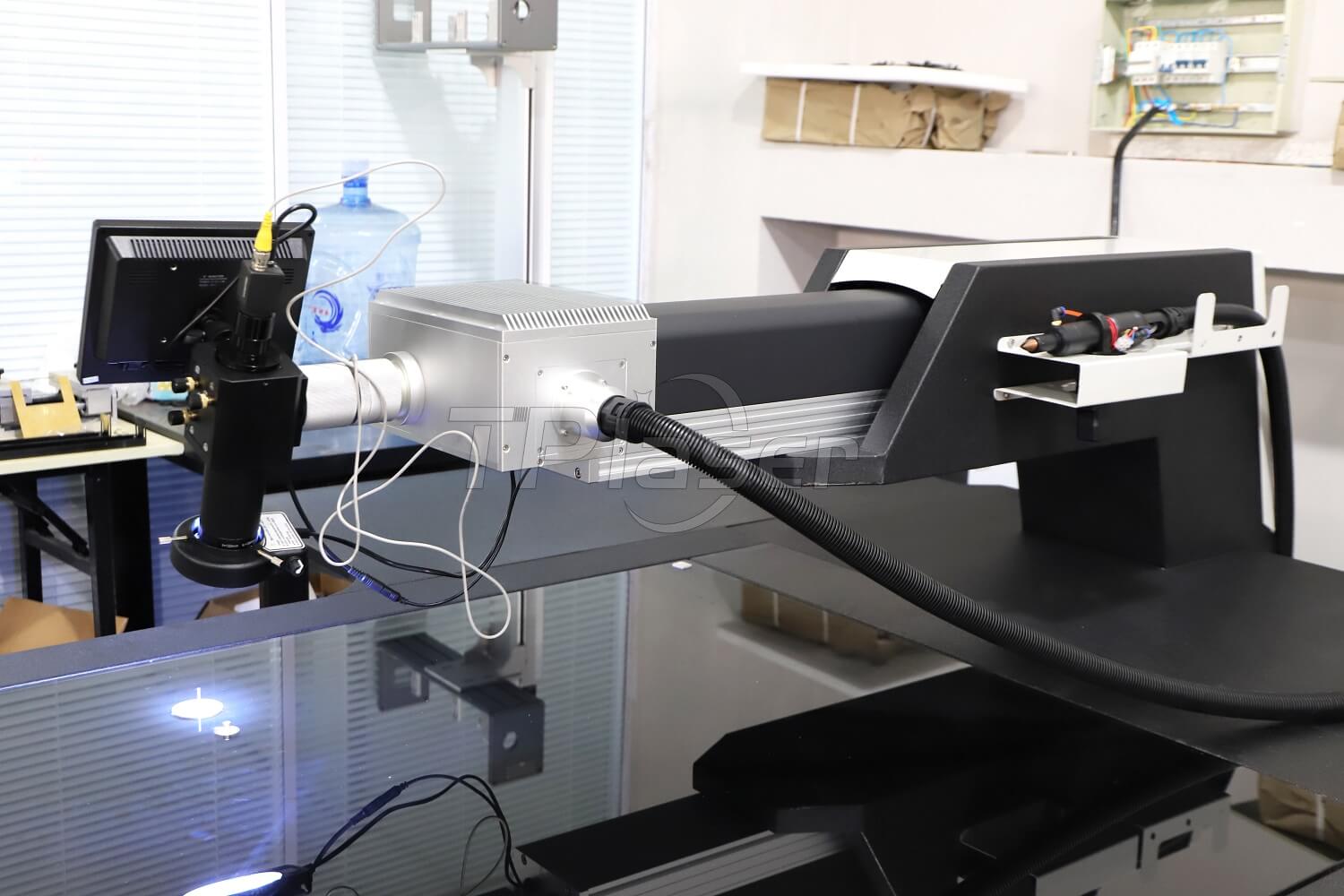

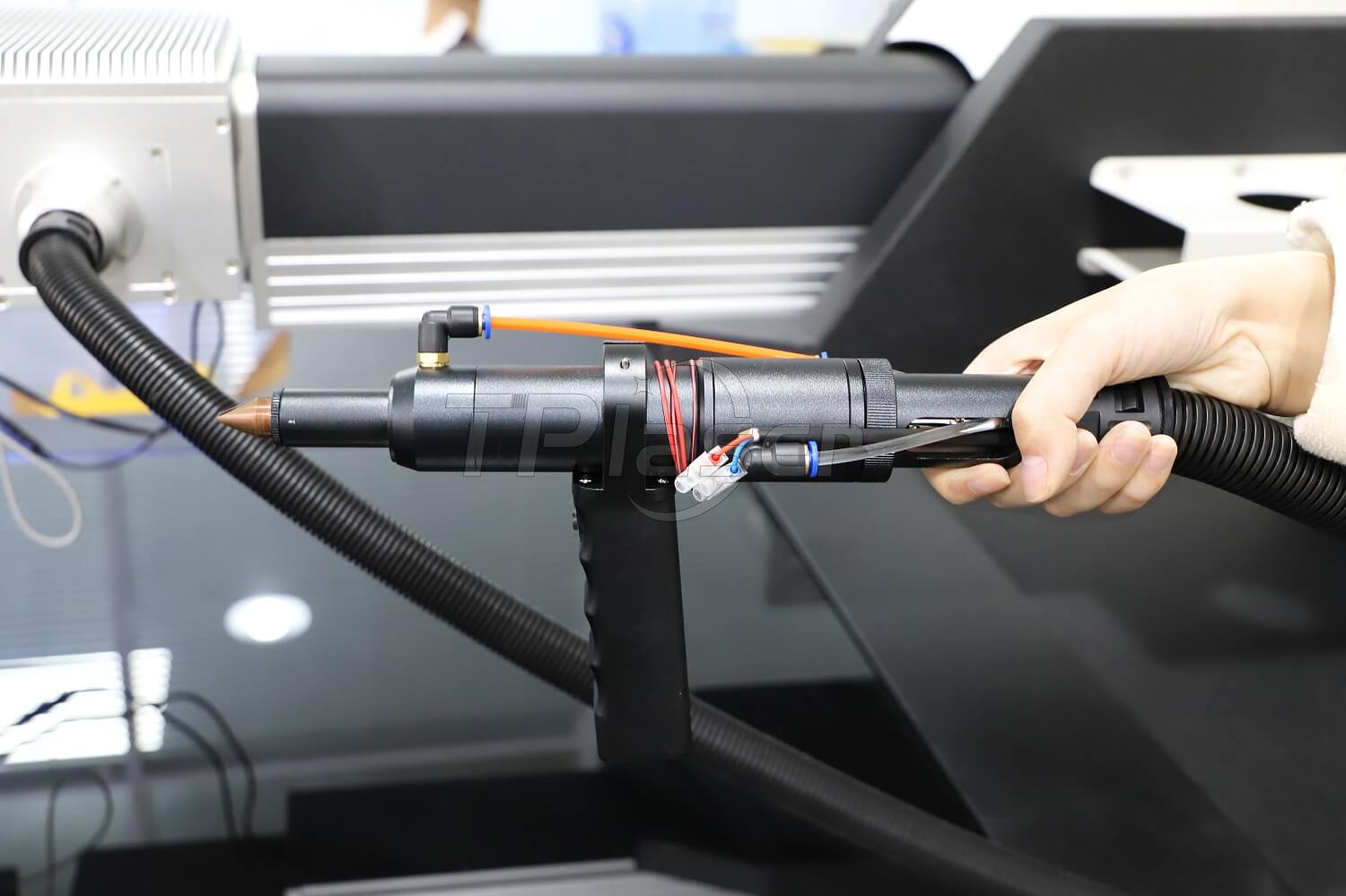

    Hand-held moving optical path, flexible, extending focusing lens F = 200MM, 5m long handheld tube, suitable for different metals welding, more convenient.

    channel letter laser welder

    channel letter laser welding machine

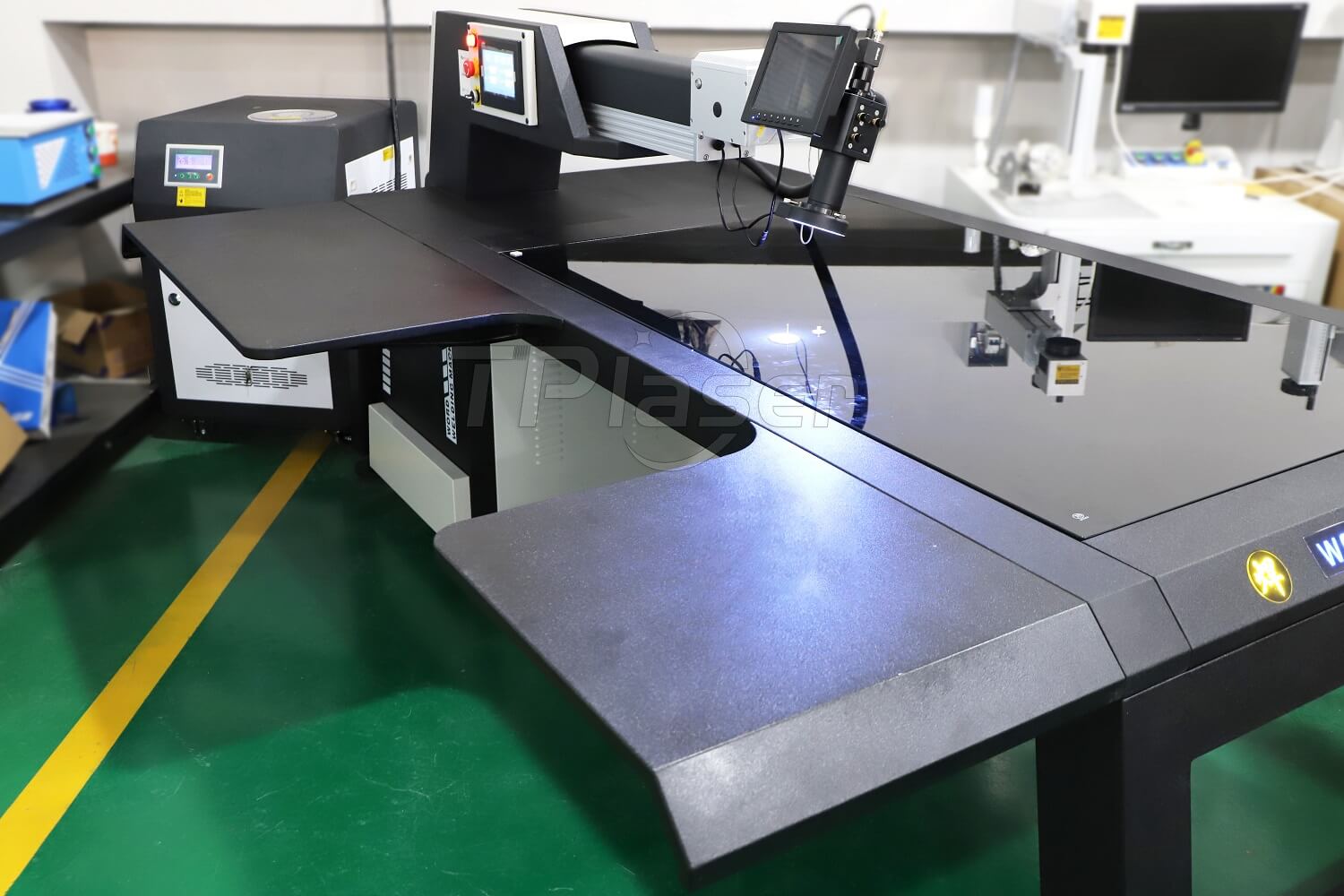

    Channel letter laser welding machine with super tempered glass working table. About 12mm thickness, with explosion proof film and paint, flat and smooth, Table can be folded.

    channel letter laser welding machine table

    Samples

    channel letter welding samples

    Service of Channel Letter Laser Welding Machine

    1). Pre-sales service: We provide you with the best solution according to your project needs, then recommend a suitable channel letter laser welding machine for you and list a quotation for you, if ok, we will provideo invoice to you, you payment by TT, Alibaba Pyment, Paypal, Western Union terms.

    2). Production period: We will send you the photos and videos of the installed channel letter laser welding machine within the specified time, and then let you know the production progress of the laser machine.

    3). Before delivery: The metal channel letter laser welding machine will be adjusted and tested within 48 hours. We will send you the test video and pictures, let you check the working accuracy of the machine, and then book the shipping vessel.

    4). After shipment: We will send all the documents to you: When the machine arrives at your port, the shipping agent will notify you to pick up the machine, then we will build one after service group, any questions of channel letter laser welding machine, we can reply you at once.

    Packaing Detail:

    1). Outside package: with standard marine export plywood box.
    2). Inner package: use stretchy film and plastic film.
    3). English software, User manual and detail installation and training videos in USB when delivery.
    4). Some extra spare parts in the tools box (Such as electrical components, limit switches etc.)
    5). channel lettter laser welding machine tpf-lw500 packing size: 1850*8003*1340mm, GW: 450kg; Within 10 working days when get your payment.

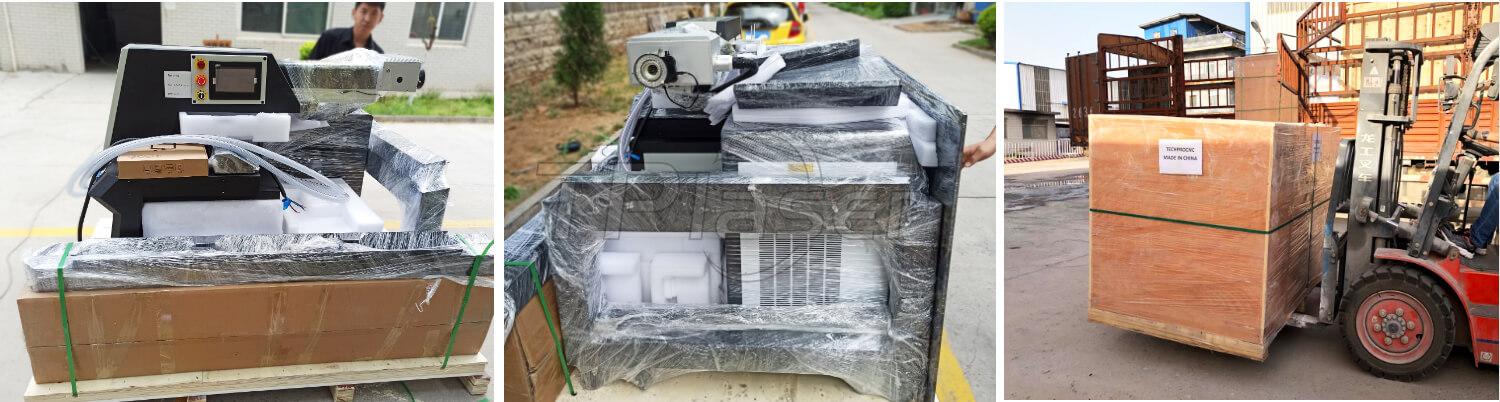

    letter laser welding machine packing list

    FAQS:

    Q1. Can i order a custom machine, such as bed appearance、color、use my logo ?

    Yes, We are factory manufacturer and we can provide perfect OEM for you.

    Q2. If i order this channel letter laser welding machine, Can you provide the raw material ?

    Yes, We have different type and color aluminum profiles for choose ,when you need I give you quotation sheet.

    Q2. How long warranty of this laser welding machine ?

    We provide two years on parts when get machine, 3 years for free repair. Life-time technical support.

    Q3. I am a new operator for this machine, How to operate it ?

    When you get this channel letter laser welding machine, there are English software, User manual and detailed installation & training video in the USB, also our engineer 24 hours technical online support by E-mail, Skype, Live Chat, TeamViewer software. also we supply oversea after-sale service.

    Q5. What payment terms of this channel letter laser welding machine ?  and how long can it be completed ?

    We support T/T(Telegraphic Transfer), L/C(Letter of Credit), Western Union, Alibaba etc terms. and standard machine we can 10-15 working days can delivery.

    Q6. If some problems happened to this machine, what should i do ?

    If during warranty, we free change new one for you; After the warranty period, we provide it with our agent cost for you. and provide technical support for life.

    Q7. What certificates channel letter laser welding machine has ?  Such as CE, FDA, SGS etc

    Yes, our company have international certification system certificate: such as CE, FDA, SGS, ISO, FA, CO etc.
